Novaline Style
Moderne veelzijdigheid en functionaliteit gecombineerd met elegante vormgeving, voor zowel zit- als circulatieruimten
- Slank ontwerp verkrijgbaar in drie formaten, met zwarte, witte en zilverkleurige ringen
- Ook verkrijgbaar met matig indirect licht, voor comfort en uniformiteit
- Gemakkelijk en eenvoudig te installeren, met een snelbevestigingssysteem voor optimale installatiesnelheden
- Afgedicht volgens IP54 en voldoet aan IK08 voor een hoge beschermingsgraad
- EXTRA OPTIES VERKRIJGBAAR: Dimbaar met DALI, Noodverlichting (E3, E3D), bediening via Bluetooth, en verschillende sensors. Raadpleeg myProduct voor de configuratieopties.
Materialen en Afwerking
Element: polycarbonaat in wit, zwart of zilver
Diffusor: opalen polycarbonaat
Installatie en Montage
Geschikt om rechtstreeks aan wanden of in plafonds te installeren. Gemakkelijk en eenvoudig te installeren, met een snelbevestigingssysteem voor optimale installatiesnelheid.
Specificatie
To specify state:

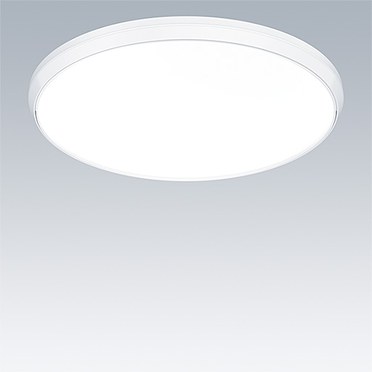

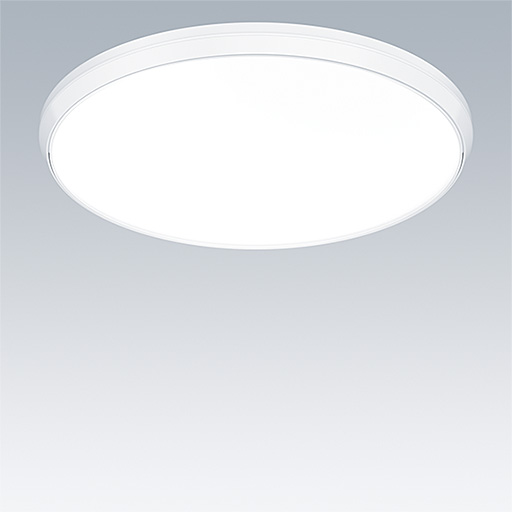

Elegant, slim, functional, and well-protected luminaire for installation on walls and ceilings. The elegant shape, with a height of only 69mm, is available in three dimensions (Ø320, Ø397mm & 497mm ), in white, black, or silver bezel, each with 2 different lumen packages, in warm white (3000K) and cool white (4000K), CRI 80. Diffuse lighting distribution, also available with slight indirect lighting, generating both comfort and uniformity. IP54 and IK08 rated, ensuring a high level of protection. Lifetime: 50 000 hours L80. The emergency versions, E3 (3 hours manual test) and E3D (3 hours self/addressable test) come with a Lithium ION battery with 3 levels of protection and 3 years warranty. Available also with DALI, basicDIM, Microwave Sensor (wired Master/Slave), Bluetooth and mobile apps.
As Thorn Novaline Style.
▼ Novaline Style
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS S 1400-840 DI HF BK | 10 | 1400 | LED | 1.68 | 96635517 | ||||
| NOVS S 1400-840 DI HF WH | 10 | 1400 | LED | 1.66 | 96635313 | ||||
| NOVS S 1900-840 DI HF BK | 13 | 1900 | LED | 1.66 | 96635598 | ||||
| NOVS S 1900-840 DI HF WH | 13 | 1900 | LED | 1.66 | 96635314 |
▼ Novaline Style S, dimbaar
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS S 1400-830 DI HFI WH | LED | 1.68 | 96635521 | ||||||
| NOVS S 1400-840 DI HFI BK | LED | 1.68 | 96635533 | ||||||
| NOVS S 1400-840 DI HFI SR | LED | 1.68 | 96635528 | ||||||
| NOVS S 1400-840 DI HFI WH | LED | 1.68 | 96635516 | ||||||
| NOVS S 1900-830 DI HFI WH | LED | 1.68 | 96635522 | ||||||
| NOVS S 1900-840 DI HFI BK | LED | 1.68 | 96635534 | ||||||
| NOVS S 1900-840 DI HFI SR | LED | 1.68 | 96635529 | ||||||
| NOVS S 1900-840 DI HFI WH | LED | 1.68 | 96635518 |
▼ Novaline Style S, noodverlichting
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS S 1900-840 DI HF E3 WH | LED | 1.94 | 96635527 | ||||||
| NOVS S 1900-840 DI HFI E3D WH | LED | 1.96 | 96635526 |
▼ Novaline Style M
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS M 2500-840 DI HF WH | LED | 2.12 | 96635315 | ||||||
| NOVS M 3500-840 DI HF WH | LED | 2.12 | 96635316 |
▼ Novaline Style, dimbaar
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS M 2500-830 DI HFI WH | LED | 2.14 | 96635523 | ||||||
| NOVS M 2500-840 DI HFI BK | LED | 2.14 | 96635535 | ||||||
| NOVS M 2500-840 DI HFI SR | LED | 2.14 | 96635530 | ||||||
| NOVS M 2500-840 DI HFI WH | LED | 2.14 | 96635519 | ||||||
| NOVS M 3500-830 DI HFI WH | LED | 2.14 | 96635524 | ||||||
| NOVS M 3500-840 DI HFI BK | LED | 2.14 | 96635536 | ||||||
| NOVS M 3500-840 DI HFI SR | LED | 2.14 | 96635531 | ||||||
| NOVS M 3500-840 DI HFI WH | LED | 2.14 | 96635354 |
▼ Novaline Style, noodverlichting
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS M 2500-840 DI HF E3 WH | LED | 2.40 | 96635319 | ||||||
| NOVS M 3500-840 DI HF E3 WH | LED | 2.40 | 96635361 | ||||||
| NOVS M 3500-840 DI HFI E3D WH | LED | 2.42 | 96635362 |
▼ Novaline Style L
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS L 4000-840 DI HF WH | LED | 2.87 | 96635317 |
▼ Novaline Style L, dimbaar
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS L 4000-830 DI HFI WH | LED | 2.89 | 96635525 | ||||||
| NOVS L 4000-840 DI HFI BK | LED | 2.89 | 96635549 | ||||||
| NOVS L 4000-840 DI HFI SR | LED | 2.89 | 96635532 | ||||||
| NOVS L 4000-840 DI HFI WH | LED | 2.89 | 96635520 | ||||||
| NOVS L 5000-830 DI HFI WH | LED | 2.89 | 96635426 | ||||||
| NOVS L 5000-840 DI HFI BK | LED | 2.89 | 96635429 | ||||||
| NOVS L 5000-840 DI HFI SR | LED | 2.89 | 96635363 | ||||||
| NOVS L 5000-840 DI HFI WH | LED | 2.87 | 96635318 |
▼ Novaline Style L, noodverlichting
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS L 5000-840 DI HFI E3D WH | LED | 3.17 | 96635430 |
▼ Novaline Style accessoires
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| NOVS M/L SUSP SET AP1 WH | 0.00 | 96635684 | |||||||
| NOVS M/L SUSP SET AP2 WH | 0.00 | 96635685 | |||||||
| NOVS M/L SUSP SET AST2 WH | 0.85 | 96635680 | |||||||
| NOVS M/L SUSP SET AST4 WH | 0.87 | 96635681 | |||||||
| NOVS S SUSP SET AP1 WH | 0.00 | 96635682 | |||||||
| NOVS S SUSP SET AP2 WH | 0.00 | 96635683 |
