Punch
Klassieke eenvoud: veelzijdigheid in combinatie met een kwalitatief hoogwaardige vormgeving en uitstraling.
- Vormgeving: Klassieke, lineaire vormgeving met een aangename, tijdloze esthetiek. Kwalitatief hoogwaardige materialen benadrukken de waarde van het product.
- Lichtspreiding: Dankzij directe, directe/indirecte (60/40 % of 50/50 %) en asymmetrische lichtspreiding, een dubbel parabolisch aluminium en een LRO-reflector plus een lichthinderwaarde <16 is PUNCH een goede keuze voor een breed toepassingsgebied.
- Installatie: Pendel- en opbouwmontagevarianten plus de mogelijkheid tot montage in continue rij en wandmontage zijn belangrijke functies om maximale flexibiliteit te bieden.
- Slimme ontwerpkenmerken die installatie en onderhoud snel en eenvoudig maken, bevorderen de gebruikerservaring.
- Varianten voor elke behoefte: KWI 80 of KWI 90, noodverlichtingsstand, trekkoord, opvullingen van verschillende maten voor continue rij of de keuze tussen LRO en rasteroptiek bieden veel mogelijkheden voor verschillende situaties.
Materialen en Afwerking
Behuizing en eindkappen: staalplaat, witte poedercoating
Dubbelparabolische rasters: sterk reflecterend aluminium
Diffusors: opalen polycarbonaat (PC)
LRO: microprismatisch polymethylmethacrylaat (PMMA)
Installatie en Montage

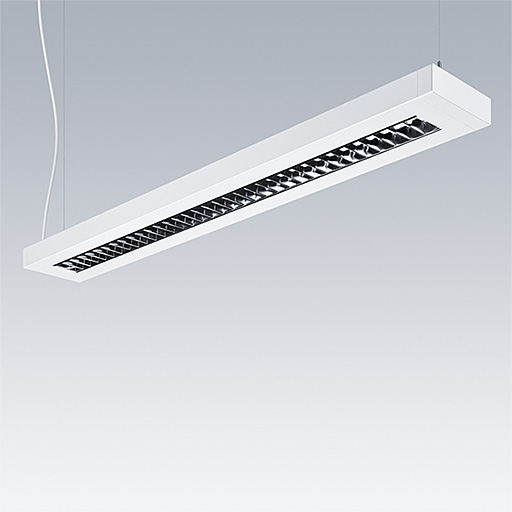

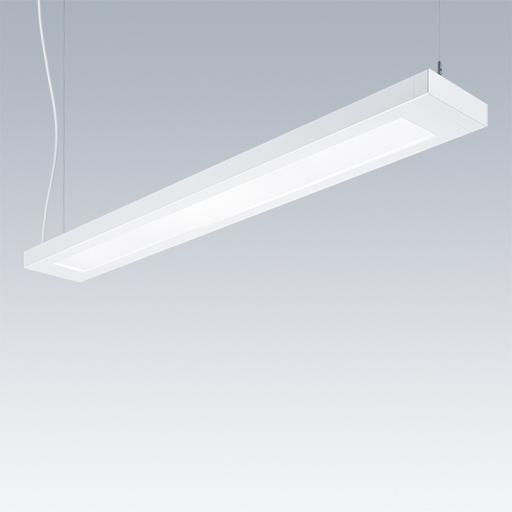

Pendelmontage direct/indirect: verschuifbare pendelmontagecomponenten voor eenvoudige montage, pendelkabels apart verkrijgbaar (22171581), voorzien van netsnoer
Pendelmontage alleen direct: combineer uw gewenste LRO-v- of LV-variant voor opbouwmontage met de pendelmontage-accessoires (22171581 & 22171349), apart te bestellen

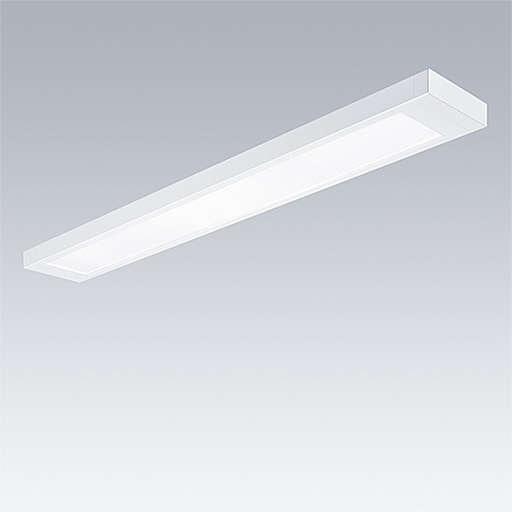

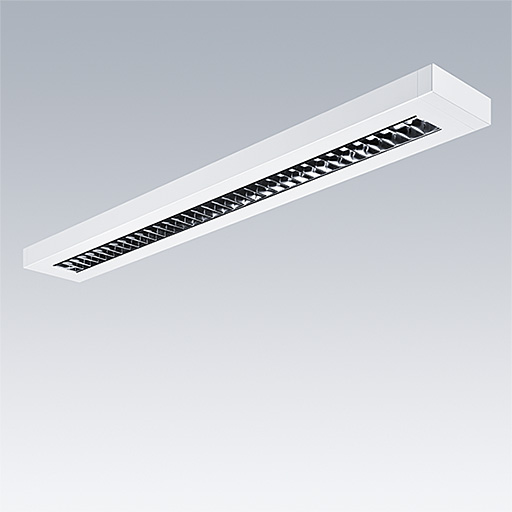

Opbouwmontage: geschikt voor rechtstreekse opbouwmontage
Doorlopende lichtlijnen & inzetarmaturen: optionele accessoires om individuele gependelde armaturen aan elkaar te koppelen
Wandmontage: optionele montagebeugel voor wandbevestiging compatibel met alle versies
Specificatie
To specify state:
A classic designed LED luminaire with double parabolic aluminium louvres or PMMA LRO optics. Direct, direct/indirect and asymmetric light distribution. Surface-mounted, suspended, continuous row (with optional infills) or wall mounting possibility. Direct/indirect split of 60/40%, 3000/4000K colour temperature, CRI >80 or CRI >90, MacAdam 3, IK04, a lifetime of 70 000h @ L80 Ta 25°C, up to UGR <19 and efficacy of up to 133 lm/W. HFIX controllable, pull cord switch, E3 or E3D options available. Standard colour powder coated sheet steel in white (close to RAL9016) - other colours (e.g. silver) on request.
As Thorn Punch
- New Product
▼ Punch, opbouw
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| PUNCH 3 LRO MSC 3200-830 L12 HF | LED | 3.50 | 96636043 | ||||||
| PUNCH 3 LRO MSC 3200-840 L12 HF | LED | 3.50 | 96636044 | ||||||
| PUNCH 3 LRO MSC 3200-930 L12 HF | LED | 3.50 | 96636033 | ||||||
| PUNCH 3 LRO MSC 3200-940 L12 HF | LED | 3.50 | 96636037 | ||||||
| PUNCH 3 LRO MSC 3800-830 L15 HF | LED | 3.80 | 96636045 | ||||||
| PUNCH 3 LRO MSC 3800-840 L15 HF | LED | 3.80 | 96636046 | ||||||
| PUNCH 3 LRO MSC 3800-930 L15 HF | LED | 3.80 | 96636034 | ||||||
| PUNCH 3 LRO MSC 3800-940 L15 HF | LED | 3.80 | 96636038 | ||||||
| PUNCH 3 LV MSC 4000-830 L12 HF | LED | 3.50 | 96636019 | ||||||
| PUNCH 3 LV MSC 4000-840 L12 HF | LED | 3.50 | 96636020 | ||||||
| PUNCH 3 LV MSC 4000-930 L12 HF | LED | 3.50 | 96636013 | ||||||
| PUNCH 3 LV MSC 4000-940 L12 HF | LED | 3.50 | 96636009 | ||||||
| PUNCH 3 LV MSC 6000-830 L15 HF | LED | 3.80 | 96636021 | ||||||
| PUNCH 3 LV MSC 6000-840 L15 HF | LED | 3.80 | 96636022 | ||||||
| PUNCH 3 LV MSC 6000-930 L15 HF | LED | 3.80 | 96636014 | ||||||
| PUNCH 3 LV MSC 6000-940 L15 HF | LED | 3.80 | 96636010 |
▼ Punch, opbouw, dimbaar
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LRO MSC 3200-830 L12 HFIX | LED | 6.00 | 96635385 | ||||||
| <PUNCH 3 LRO MSC 3800-830 L15 HFIX | LED | 6.50 | 96635387 | ||||||
| PUNCH 3 LRO MSC 3200-840 L12 HFIX | LED | 6.00 | 96635386 | ||||||
| PUNCH 3 LRO MSC 3200-930 L12 HFIX | LED | 3.50 | 96636049 | ||||||
| PUNCH 3 LRO MSC 3200-940 L12 HFIX | LED | 6.00 | 96635391 | ||||||
| PUNCH 3 LRO MSC 3800-840 L15 HFIX | LED | 6.50 | 96635388 | ||||||
| PUNCH 3 LRO MSC 3800-930 L15 HFIX | LED | 3.80 | 96636050 | ||||||
| PUNCH 3 LRO MSC 3800-940 L15 HFIX | LED | 6.50 | 96635392 | ||||||
| PUNCH 3 LV MSC 4000-830 L12 HFIX | LED | 3.50 | 96635735 | ||||||
| PUNCH 3 LV MSC 4000-840 L12 HFIX | LED | 3.50 | 96635736 | ||||||
| PUNCH 3 LV MSC 4000-930 L12 HFIX | LED | 3.50 | 96636025 | ||||||
| PUNCH 3 LV MSC 4000-940 L12 HFIX | LED | 3.80 | 96635717 | ||||||
| PUNCH 3 LV MSC 6000-830 L15 HFIX | LED | 3.80 | 96635737 | ||||||
| PUNCH 3 LV MSC 6000-840 L15 HFIX | LED | 3.80 | 96635738 | ||||||
| PUNCH 3 LV MSC 6000-930 L15 HFIX | LED | 3.80 | 96636026 | ||||||
| PUNCH 3 LV MSC 6000-940 L15 HFIX | LED | 3.80 | 96635718 |
▼ Punch, opbouwmontage, dimbaar, noodverlichting
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LRO MSC 3200-830 L12 HFIX E3 | LED | 6.20 | 96635401 | ||||||
| <PUNCH 3 LRO MSC 3200-840 L12 HFIX E3 | LED | 6.20 | 96635402 | ||||||
| PUNCH 3 LRO MSC 3200-930 L12 HFIX E3 | LED | 3.50 | 96636053 | ||||||
| PUNCH 3 LRO MSC 3200-940 L12 HFIX E3 | LED | 3.50 | 96635739 | ||||||
| PUNCH 3 LRO MSC 3800-830 L15 HFIX E3 | LED | 6.80 | 96635403 | ||||||
| PUNCH 3 LRO MSC 3800-840 L15 HFIX E3 | LED | 6.80 | 96635404 | ||||||
| PUNCH 3 LRO MSC 3800-930 L15 HFIX E3 | LED | 3.80 | 96636052 | ||||||
| PUNCH 3 LRO MSC 3800-940 L15 HFIX E3 | LED | 6.80 | 96635408 | ||||||
| PUNCH 3 LV MSC 4000-830 L12 HFIX E3 | LED | 3.50 | 96635727 | ||||||
| PUNCH 3 LV MSC 4000-840 L12 HFIX E3 | LED | 3.50 | 96635728 | ||||||
| PUNCH 3 LV MSC 4000-930 L12 HFIX E3 | LED | 3.50 | 96636029 | ||||||
| PUNCH 3 LV MSC 4000-940 L12 HFIX E3 | LED | 3.80 | 96635721 | ||||||
| PUNCH 3 LV MSC 6000-830 L15 HFIX E3 | LED | 3.80 | 96635729 | ||||||
| PUNCH 3 LV MSC 6000-840 L15 HFIX E3 | LED | 3.80 | 96635730 | ||||||
| PUNCH 3 LV MSC 6000-930 L15 HFIX E3 | LED | 3.80 | 96636030 | ||||||
| PUNCH 3 LV MSC 6000-940 L15 HFIX E3 | LED | 3.80 | 96635722 |
▼ Punch, pendel
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 ASYM MSP 2200-830 L12 HF | LED | 3.50 | 96630502 | ||||||
| <PUNCH 3 ASYM MSP 2200-840 L12 HF | LED | 3.50 | 96630503 | ||||||
| PUNCH 3 ASYM MSP 2200-930 L12 HF | LED | 3.50 | 96636057 | ||||||
| PUNCH 3 ASYM MSP 2200-940 L12 HF | LED | 3.50 | 96636056 | ||||||
| PUNCH 3 LRO MSP 5500-830 L12 HF | LED | 3.50 | 96636039 | ||||||
| PUNCH 3 LRO MSP 5500-840 L12 HF | LED | 3.50 | 96636040 | ||||||
| PUNCH 3 LRO MSP 5500-930 L12 HF | LED | 3.50 | 96636031 | ||||||
| PUNCH 3 LRO MSP 5500-940 L12 HF | LED | 3.50 | 96636035 | ||||||
| PUNCH 3 LRO MSP 6600-830 L15 HF | LED | 3.80 | 96636041 | ||||||
| PUNCH 3 LRO MSP 6600-840 L15 HF | LED | 3.80 | 96636042 | ||||||
| PUNCH 3 LRO MSP 6600-930 L15 HF | LED | 3.80 | 96636032 | ||||||
| PUNCH 3 LRO MSP 6600-940 L15 HF | LED | 3.80 | 96636036 | ||||||
| PUNCH 3 LV MSP 5500-830 L12 HF | LED | 3.50 | 96636015 | ||||||
| PUNCH 3 LV MSP 5500-840 L12 HF | LED | 3.50 | 96636016 | ||||||
| PUNCH 3 LV MSP 5500-930 L12 HF | LED | 3.50 | 96636011 | ||||||
| PUNCH 3 LV MSP 5500-940 L12 HF | LED | 3.50 | 96636007 | ||||||
| PUNCH 3 LV MSP 6600-830 L15 HF | LED | 3.80 | 96636017 | ||||||
| PUNCH 3 LV MSP 6600-840 L15 HF | LED | 3.80 | 96636018 | ||||||
| PUNCH 3 LV MSP 6600-930 L15 HF | LED | 3.80 | 96636012 | ||||||
| PUNCH 3 LV MSP 6600-940 L15 HF | LED | 3.80 | 96636008 |
▼ Punch, pendel, dimbaar
▼ Punch, ophangmontage, dimbaar, noodverlichting
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LRO MSP 5500-830 L12 HFIX E3 | LED | 6.20 | 96635397 | ||||||
| <PUNCH 3 LRO MSP 6600-830 L15 HFIX E3 | LED | 6.80 | 96635399 | ||||||
| <PUNCH 3 LRO MSP 6600-940 L15 HFIX E3 | LED | 6.80 | 96635406 | ||||||
| PUNCH 3 LRO MSP 5500-840 L12 HFIX E3 | LED | 6.20 | 96635398 | ||||||
| PUNCH 3 LRO MSP 5500-840 L12 HFIX E3D | LED | 6.20 | 96635405 | ||||||
| PUNCH 3 LRO MSP 5500-930 L12 HFIX E3 | LED | 3.50 | 96636054 | ||||||
| PUNCH 3 LRO MSP 5500-940 L12 HFIX E3 | LED | 3.80 | 96635740 | ||||||
| PUNCH 3 LRO MSP 6600-840 L15 HFIX E3 | LED | 6.80 | 96635400 | ||||||
| PUNCH 3 LRO MSP 6600-840 L15 HFIX E3D | LED | 6.20 | 96635407 | ||||||
| PUNCH 3 LRO MSP 6600-930 L15 HFIX E3 | LED | 3.80 | 96636051 | ||||||
| PUNCH 3 LV MSP 5500-830 L12 HFIX E3 | LED | 3.50 | 96635723 | ||||||
| PUNCH 3 LV MSP 5500-840 L12 HFIX E3 | LED | 3.80 | 96635724 | ||||||
| PUNCH 3 LV MSP 5500-930 L12 HFIX E3 | LED | 3.50 | 96636027 | ||||||
| PUNCH 3 LV MSP 5500-940 L12 HFIX E3 | LED | 3.50 | 96635719 | ||||||
| PUNCH 3 LV MSP 6600-830 L15 HFIX E3 | LED | 3.50 | 96635725 | ||||||
| PUNCH 3 LV MSP 6600-840 L15 HFIX E3 | LED | 3.80 | 96635726 | ||||||
| PUNCH 3 LV MSP 6600-930 L15 HFIX E3 | LED | 3.80 | 96636028 | ||||||
| PUNCH 3 LV MSP 6600-940 L15 HFIX E3 | LED | 3.50 | 96635720 |
▼ Punch, accessoires
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LV INFILL L15 | 2.85 | 96635745 | |||||||
| CEILING ROSE ROUND ASI/ASQ3 WH | 0.20 | 22171581 | |||||||
| PUNCH 3 ASYM WALL BRACKET WH | 0.75 | 96667068 | |||||||
| PUNCH 3 EMERGENCY BATTERY SPARE | 0.22 | 96636058 | |||||||
| PUNCH 3 LRO C MOUNT SET | 1.20 | 96635433 | |||||||
| PUNCH 3 LRO INFILL L15 | 1.50 | 96635435 | |||||||
| PUNCH 3 LRO INFILL L9 | 1.20 | 96635434 | |||||||
| PUNCH 3 LV C MOUNT SET | 0.50 | 96635743 | |||||||
| PUNCH 3 LV INFILL L9 | 1.85 | 96635744 |
