Areaflood Pro 2
Schijnwerperarmatuur voor veelzijdige toepassingen met uitzonderlijke optiekprestatie en connectiviteitsoplossingen
- Complete productreeks met armaturen in vijf formaten en lichtstromen tussen 4000 en 100.000 lumen
- Omvat het in eigen huis ontworpen en ontwikkelde assortiment van THORN-optieken. Maakt in totaal 21 verschillende lichtverdelingsvarianten mogelijk voor terreinen, wegen en sportfaciliteiten
- Areaflood Pro is verkrijgbaar met THORN's Balanced White-technologie om de nachtelijke hemel en omgeving te beschermen
- Onderhoudsvrije oplossing. Maximale levensduur voor het product van 100.000 uur L95
Materialen en Afwerking
Armatuurbehuizing in gietaluminium EN AC-44300
Robuuste oplossing met uitstekende corrosiebestendigheid C5 volgens ISO 9223:2012
Afgewerkt in lichtgrijs (nagenoeg RAL9006) of 50 andere RAL-kleuren op verzoek
Gehard glas
Hoge mechanische weerstand IK08 en IP66
Installatie en Montage
Veelzijdig instelbare bevestiging voor opbouwmontage voor vele toepassingen
Optionele paalopzetaccessoires voor masttoptoepassingen
Optionele oppervlaktebehandeling voor montage in zwembaden
Specificatie
To specify state:
Available in Electrical Class I and Class II
Zhaga Up and Zhaga Down sockets available
Integral NEMA and photocell available
DALI dimmable on-board driver variants
Bi-power Line and Light Reduction Twin Phase variants
Built in surge protection, with additional surge protection option available
CCT: 727 / 827 / 730 / 830 / 740 / 840 / 757 / 857
CCT: 957 TLCI 86 / 957 TLCI 90 for performance television broadcasting applications
Balanced white: CCT range 827 - 857
As Thorn Areaflood Pro 2
- New Product
New Product
LumExpress Product
eControl Product

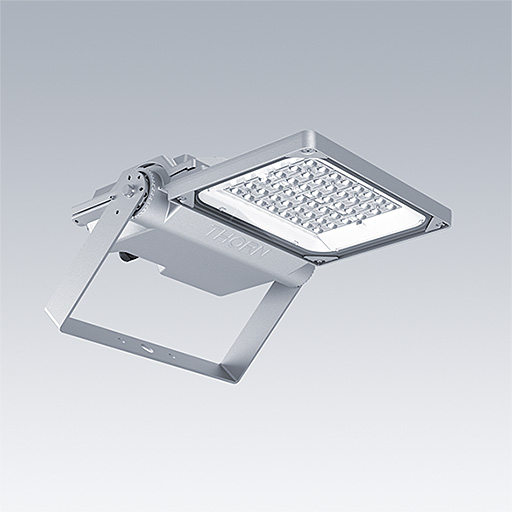

▼ Areaflood Pro 2, Small
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP2 S 24L35-740 A4 CL1 GY | 26 | 4404 | LED | 6.79 | 96635899 | ||||
| AFP2 S 24L35-740 A4 CL2 GY | 26 | 4404 | LED | 6.79 | 96635869 | ||||
| AFP2 S 24L50-740 A4 CL1 GY | 37 | 6071 | LED | 6.79 | 96635900 | ||||
| AFP2 S 24L50-740 A4 CL2 GY | 37 | 6071 | LED | 6.79 | 96635870 | ||||
| AFP2 S 24L70-740 A4 CL1 GY | 52 | 8147 | LED | 6.79 | 96635901 | ||||
| AFP2 S 24L70-740 A4 CL2 GY | 52 | 8147 | LED | 6.79 | 96635871 | ||||
| AFP2 S 36L35-740 A4 CL1 GY | 39 | 6593 | LED | 6.84 | 96635902 | ||||
| AFP2 S 36L35-740 A4 CL2 GY | 39 | 6593 | LED | 6.84 | 96635872 | ||||
| AFP2 S 36L50-740 A4 CL1 GY | 55 | 9079 | LED | 6.82 | 96635903 | ||||
| AFP2 S 36L50-740 A4 CL2 GY | 55 | 9079 | LED | 6.82 | 96635873 | ||||
| AFP2 S 36L70-740 A4 CL1 GY | 76 | 12161 | LED | 7.07 | 96635904 | ||||
| AFP2 S 36L70-740 A4 CL2 GY | 76 | 12161 | LED | 7.07 | 96635874 | ||||
| AFP2 S 48L35-740 A4 CL1 GY | 50 | 8772 | LED | 7.13 | 96635905 | ||||
| AFP2 S 48L35-740 A4 CL2 GY | 50 | 8772 | LED | 7.13 | 96635875 | ||||
| AFP2 S 48L50-740 A4 CL1 GY | 71 | 12065 | LED | 7.38 | 96635906 | ||||
| AFP2 S 48L50-740 A4 CL2 GY | 71 | 12065 | LED | 7.38 | 96635876 | ||||
| AFP2 S 48L70-740 A4 CL1 GY | 101 | 16112 | LED | 7.60 | 96635907 | ||||
| AFP2 S 48L70-740 A4 CL2 GY | 101 | 16112 | LED | 7.60 | 96635877 |

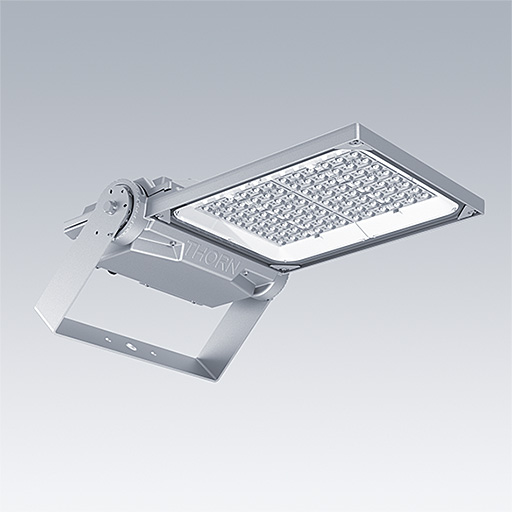

▼ Areaflood Pro 2, Medium
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP2 M 60L35-740 A4 CL1 GY | 63 | 10981 | LED | 9.79 | 96635908 | ||||
| AFP2 M 60L35-740 A4 CL2 GY | 63 | 10981 | LED | 9.79 | 96635878 | ||||
| AFP2 M 60L50-740 A4 CL1 GY | 90 | 15107 | LED | 9.79 | 96635909 | ||||
| AFP2 M 60L50-740 A4 CL2 GY | 90 | 15107 | LED | 9.79 | 96635879 | ||||
| AFP2 M 60L70-740 A4 CL1 GY | 127 | 20227 | LED | 9.79 | 96635910 | ||||
| AFP2 M 60L70-740 A4 CL2 GY | 127 | 20227 | LED | 9.79 | 96635880 | ||||
| AFP2 M 72L35-740 A4 CL1 GY | 76 | 13149 | LED | 9.85 | 96635911 | ||||
| AFP2 M 72L35-740 A4 CL2 GY | 76 | 13149 | LED | 9.85 | 96635881 | ||||
| AFP2 M 72L50-740 A4 CL1 GY | 108 | 18048 | LED | 9.85 | 96635912 | ||||
| AFP2 M 72L50-740 A4 CL2 GY | 108 | 18048 | LED | 9.85 | 96635882 | ||||
| AFP2 M 72L70-740 A4 CL1 GY | 151 | 24085 | LED | 9.77 | 96635913 | ||||
| AFP2 M 72L70-740 A4 CL2 GY | 151 | 24085 | LED | 9.77 | 96635883 | ||||
| AFP2 M 96L35-740 A4 CL1 GY | 99 | 17476 | LED | 9.89 | 96635914 | ||||
| AFP2 M 96L35-740 A4 CL2 GY | 99 | 17476 | LED | 9.89 | 96635884 | ||||
| AFP2 M 96L50-740 A4 CL1 GY | 142 | 23921 | LED | 9.89 | 96635915 | ||||
| AFP2 M 96L50-740 A4 CL2 GY | 142 | 23921 | LED | 9.89 | 96635885 | ||||
| AFP2 M 96L70-740 A4 CL1 GY | 197 | 31792 | LED | 10.10 | 96635916 | ||||
| AFP2 M 96L70-740 A4 CL2 GY | 197 | 31792 | LED | 10.10 | 96635886 | ||||
| AFP2 M 96L85-740 A4 CL1 GY | 245 | 36791 | LED | 10.57 | 96635917 | ||||
| AFP2 M 96L85-740 A4 CL2 GY | 245 | 36791 | LED | 10.57 | 96635887 |

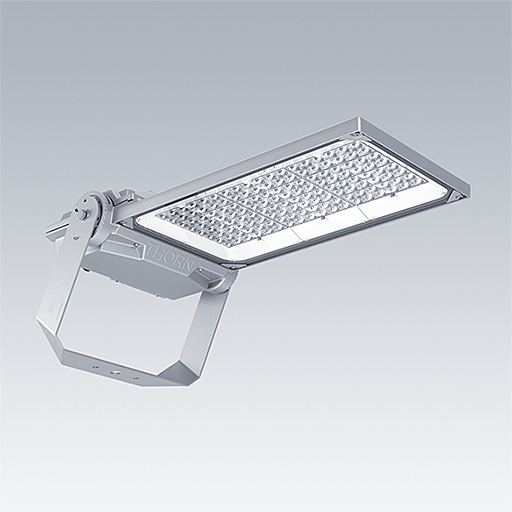

▼ Areaflood Pro 2, Large
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP2 L 108L35-740 A4 CL1 GY | 109 | 19677 | LED | 12.51 | 96635918 | ||||
| AFP2 L 108L35-740 A4 CL2 GY | 109 | 19677 | LED | 12.51 | 96635888 | ||||
| AFP2 L 108L50-740 A4 CL1 GY | 157 | 26967 | LED | 12.51 | 96635919 | ||||
| AFP2 L 108L50-740 A4 CL2 GY | 157 | 26967 | LED | 12.51 | 96635889 | ||||
| AFP2 L 108L70-740 A4 CL1 GY | 225 | 35860 | LED | 12.98 | 96635920 | ||||
| AFP2 L 108L70-740 A4 CL2 GY | 225 | 35860 | LED | 12.98 | 96635890 | ||||
| AFP2 L 120L35-740 A4 CL1 GY | 122 | 21845 | LED | 12.57 | 96635921 | ||||
| AFP2 L 120L35-740 A4 CL2 GY | 122 | 21845 | LED | 12.57 | 96635891 | ||||
| AFP2 L 120L50-740 A4 CL1 GY | 174 | 29902 | LED | 12.81 | 96635922 | ||||
| AFP2 L 120L50-740 A4 CL2 GY | 174 | 29902 | LED | 12.81 | 96635892 | ||||
| AFP2 L 120L70-740 A4 CL1 GY | 250 | 39687 | LED | 13.28 | 96635923 | ||||
| AFP2 L 120L70-740 A4 CL2 GY | 250 | 39687 | LED | 13.28 | 96635893 | ||||
| AFP2 L 144L35-740 A4 CL1 GY | 151 | 26147 | LED | 13.40 | 96635924 | ||||
| AFP2 L 144L35-740 A4 CL2 GY | 151 | 26147 | LED | 13.40 | 96635894 | ||||
| AFP2 L 144L50-740 A4 CL1 GY | 213 | 35727 | LED | 13.40 | 96635925 | ||||
| AFP2 L 144L50-740 A4 CL2 GY | 213 | 35727 | LED | 13.40 | 96635895 | ||||
| AFP2 L 144L70-740 A4 CL1 GY | 298 | 47222 | LED | 13.48 | 96635926 | ||||
| AFP2 L 144L70-740 A4 CL2 GY | 298 | 47222 | LED | 13.48 | 96635896 | ||||
| AFP2 L 144L80-740 A4 CL1 GY | 337 | 52026 | LED | 13.90 | 96635927 | ||||
| AFP2 L 144L80-740 A4 CL2 GY | 337 | 52026 | LED | 13.90 | 96635897 |

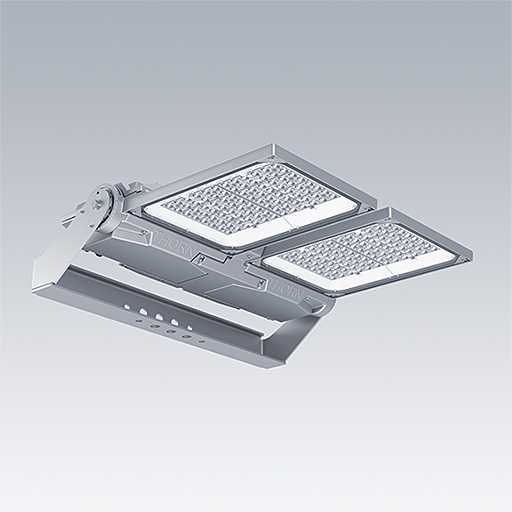

▼ Areaflood Pro 2, Medium double
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP2 2M 192L50-740 A4 CL1 GY | 276 | 47689 | LED | 23.06 | 96636356 | ||||
| AFP2 2M 192L50-740 A4 CL2 GY | 276 | 47689 | LED | 23.36 | 96636355 | ||||
| AFP2 2M 192L70-740 A4 CL1 GY | 392 | 63236 | LED | 23.48 | 96635928 | ||||
| AFP2 2M 192L70-740 A4 CL2 GY | 392 | 63236 | LED | 23.78 | 96635898 | ||||
| AFP2 2M 192L85-740 A4 CL1 GY | 483 | 72987 | LED | 24.45 | 96635929 |

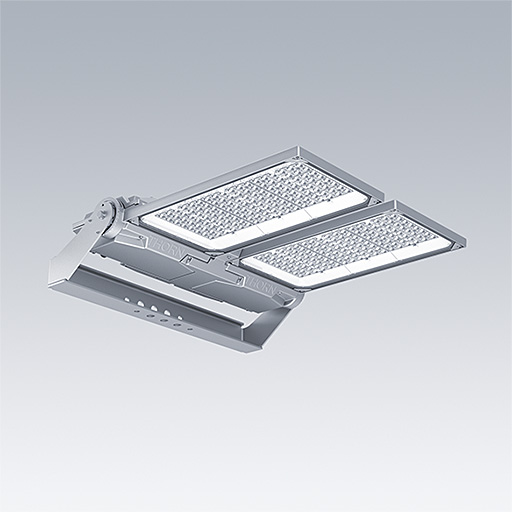

▼ Areaflood Pro 2, Large double
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP2 2L 216L50-740 A4 CL1 GY | 312 | 53823 | LED | 28.10 | 96636357 | ||||
| AFP2 2L 216L70-740 A4 CL1 GY | 444 | 71436 | LED | 28.74 | 96635930 | ||||
| AFP2 2L 288L50-740 A4 CL1 GY | 412 | 71208 | LED | 28.46 | 96636358 | ||||
| AFP2 2L 288L70-740 A4 CL1 GY | 585 | 94019 | LED | 29.10 | 96635931 | ||||
| AFP2 2L 288L75-740 A4 CL1 GY | 638 | 98512 | LED | 29.22 | 96635932 |
▼ Areaflood Pro 2, accessories
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| AFP MTP 60MM R9006 | 1.66 | 96274660 | |||||||
| AFP MTP 60MM GY | 1.77 | 96631743 | |||||||
| AFP MTP 76MM GY | 1.71 | 96631744 | |||||||
| AFP2 AIMING DEVICE | 0.39 | 96636419 | |||||||
| AFP2 BIRD DETERRENT LARGE | 2.08 | 96636422 | |||||||
| AFP2 BIRD DETERRENT MEDIUM | 1.87 | 96636417 | |||||||
| AFP2 BIRD DETERRENT SMALL | 1.38 | 96636416 | |||||||
| AFP2 EXTERNAL LOUVERS LARGE | 1.65 | 96636426 | |||||||
| AFP2 EXTERNAL LOUVERS MEDIUM | 1.35 | 96636425 | |||||||
| AFP2 EXTERNAL LOUVERS SMALL | 1.24 | 96636424 | |||||||
| AFP2 MTP 76MM R9006 | 1.60 | 96274659 | |||||||
| AFP2 PROTECTION GRID LARGE | 2.17 | 96636423 | |||||||
| AFP2 PROTECTION GRID MEDIUM | 1.70 | 96636421 | |||||||
| AFP2 PROTECTION GRID SMALL | 1.20 | 96636420 |
