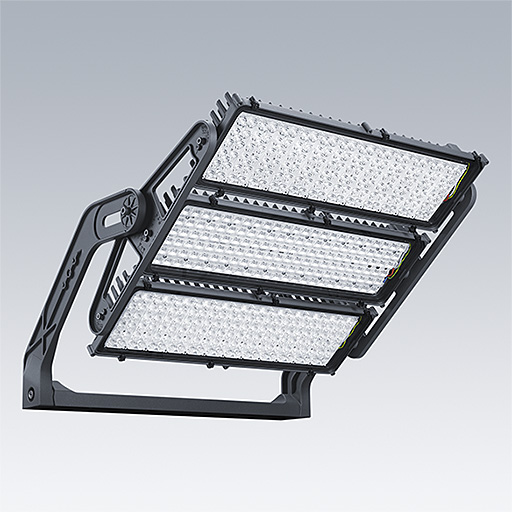

Krachtige LED-schijnwerper voor sporttoepassingen (van professionele tot recreatieve sportfaciliteiten) en voor zoneverlichting.
- BEST IN CLASS - Krachtige verlichting tot 264.000 lm, uitzonderlijk weerbestendig, uitstekende thermische eigenschappen, minimale gevoeligheid voor wind, ruime keuze qua lichtopbrengst en precisie-optieken.
- INDIVIDUELE MODULAIRE ORIËNTATIE - Flexibele optieken en modulair ontwerp maken diverse optiekcombinaties mogelijk, incl. de mogelijkheid om elke LED-module apart te kantelen om het aantal armaturen en de blootstelling aan wind te minimaliseren.
- Uitstekende prestaties; de compacte ballast wordt geïnstalleerd op het armatuurkader of tot op een afstand van 200 m. Gepatenteerd "visgraat"-ontwerp maakt maximale luchtkoeling voor een optimaal thermisch beheer mogelijk
- Via DALI of RDM-DMX volledig stuurbare oplossing voor onmiddellijke verlichting, getrapte verlichtingsniveaus en de verlichting van evenementen met dynamische verlichtingsscenario's
- Intuïtief ontwerp voor eenvoudige montage met QuickFix-aansluitdoos en meerdere montageopties. Flexibele precisieafstelling voor nauwkeurig en snel kantelen en uitlijnen van modules
- Om er zeker van te zijn dat het door u gekozen product geschikt is voor uw project, kunt u het beste 'myProduct' gebruiken om de vereiste versie te configureren. Uw plaatselijke verkoopteam kan u hierbij helpen
Materialen en Afwerking
Body : die-cast aluminium EN AC-44300 modules with patented 'pin fins' for maximum thermal management, powder coated paint finish
Frame and stirrup : die-cast aluminium EN AC 44100 or fabricated sheet aluminium painted (all versions) or unpainted (2 & 3 module stirrup versions)
Aluminium: low copper content, suitable for use in harsh environments including swimming pools (gearbox to be mounted outside pool hall)
Glass: 4mm toughened, high transmission glass with anti-reflective treatment on both faces
Screws: zinc coated stainless steel A4 grade
Corrosion resistance: protected to classification C5 according to ISO 9223:2012
Installatie en Montage
Bracket mounted using different fixing points (one M20 screw or two M14 screws). Frame fixed to stirrup with M10 Hex screw with the possibility to move (100mm) the position horizontally (available only on 3 and 2 LED modules stirrup version). Tiltable LED modules fixed on frame via M8 Hex screws. Reversable stirrup allows 'under slung' mounting and different mounting configurations including suspension, wall mounting, surface mounting, roof mounting. The LED modules are pre-wired to a distribution box with an easy clamping connection system.
A separately supplied gearbox can be installed remotely up to 200m from the luminaire and is equipped with four different cable glands - 1 x M25 cable gland accepting cable diameter between 10 mm and 17 mm and wiring with plug-in terminals for wires up to 2,5mm² for mains supply (220-400V / 50-60Hz), 2 x M16 cable glands accepting cable diameter between 5 mm and 10 mm for control IN/OUT and 1xM32 cable gland accepting cable diameter between 13 mm and 21 mm wiring with plug-in terminals for wires up to 2,5mm² (one cable of 7-cores at length of customer choice not supplied by Thorn and used for electrical connection to the floodlight - 8-cores where NTC is used) – and LED signal to indicate the status of the gearbox. Four holes in power supply housing corners allow different mounting options, in accordance with the installation instructions.
A connection / junction box is included with 2 and 3 module versions.
A precision aiming device is available and adjustable on the top or bottom of each LED module.
Specificatie
To specify state:
High power LED floodlight for sports and area lighting. With a wide range of CCT/CRI/TLCI (3000K, 4000K and 5700K, CRI from 70 to 90+ and TLCI up to 90+) to cover all the application requirements and flicker free operation suitable for HDTV broadcasting. The floodlight allows optics to be mixed and has tiltable LED modules to optimize lighting designs and minimize number of floodlights in an installation. Each module can be individually tilted for optimum control. Compact floodlight (30,8kg for three bricks version, 23kg for two bricks version, 18,7kg for two bricks version light bracket and 9,6kg for 1 brick version), highly resistant (IP66, IK08), available with 11 excellent lighting distributions plus louvre options. To be completed with compact and light gearbox IP66 with RDM-DMX or DALI control interface. Gearbox housing made of die-cast aluminum with “fishbone” fins to guarantee a better thermal management in all permitted mounting positions and a full working range at ambient temperature -40°C/+45°C. Equipped in the frontal panel with LED signal to indicate the status of the gearbox. Lifetime greater than 50khrs. Surge level 10kV for Common mode and differential mode. Hot restrike and flicker-free up to 1000 frames per second (required for 100-50% output level) for HDTV camera. The gearbox can be installed on the bracket of the floodlight, using the mounting accessory, inside the mast or remotely up to 200m from the floodlight. Maximum driving current must be selected according to the constraint from the targeted application, advice may be obtained from your local representative or using myProduct configurator.
As Thorn Altis Gen5
