Olsys Area
Duurzame, veelzijdige en efficiënte LED schijnwerpers voor binnen- en buitenverlichting

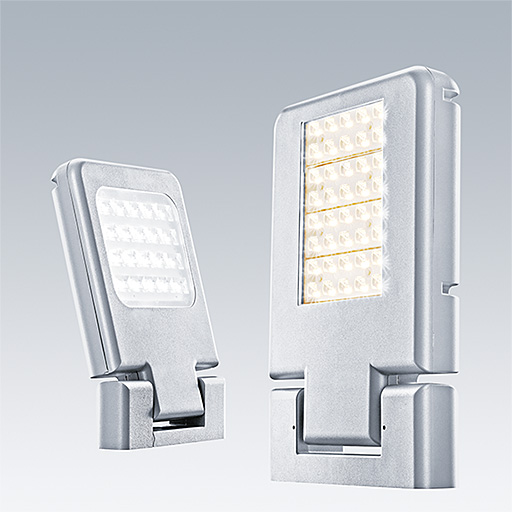

- Een ruime keuze met twee groottes, vier lumenpakketten, twee kleurtemperaturen, inclinatie -90% / +90% en drie montage-opties
- Uitzonderlijk lage totale kost met een geoptimaliseerde warmteregeling voor het leveren van een levensduur tot 80 000u (L70, 25°)
- Uiterst duurzaam pakket, volledig uit gietaluminium, IP66/IK08, compleet met 10Kv stroomstootbeveiliging
- Minimalistisch ontwerp dat past bij de Olsys straatarmaturen, palen en beugels en resulteert in een harmonieuze integratie in de omgeving
Materialen en Afwerking
Body: die-cast aluminium (AS9U), standard corrosion class: C3, powder coated silver grey 9006
Enclosure: size 1 clear UV stabilised PC size 2: tempered glass
Optics: size 1 PC, size 2 micro reflectors in highly reflective anodised aluminium
Screws: stainless steel
Installatie en Montage
Size 2 supplied pre-wired with connector.

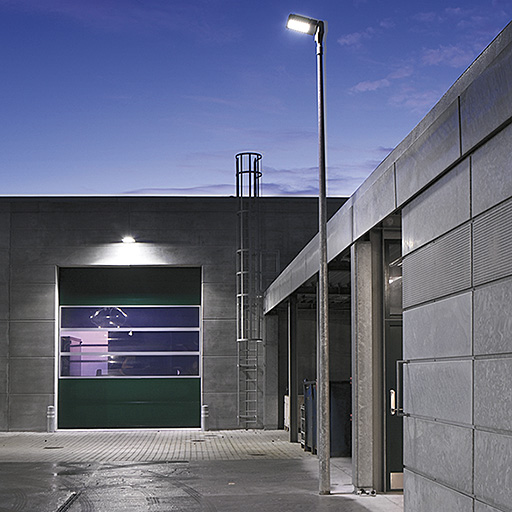

Delivered ready to install for wall mounting, knock out on the side of the base for cabling when it is not integrated within the wall. For ground mounting please order the spike accessory. Possibility to post top mount with Olsys street accessories. Dedicated column package for urban area lighting or car parks. Delivered with factory integral gear, all supplied in one box.
Maintenance: access to gear (replaceable) via 4 screws from the canopy.
Suitable for ambient temperature range -30 to 50°C
Specificatie
IP66 LED schijnwerpers beschikbaar in 24/45/70/90W (tot 8530lm) met asymmetrische distributie.
▼ Olsys 1 area
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| OLSYS1 12L70 730 CL1 AREA A/S | 28 | 3160 | LED | 2.85 | 96633544 | ||||
| OLSYS1 12L70 730 CL2 AREA A/S | 28 | 3160 | LED | 2.85 | 96633543 | ||||
| OLSYS1 12L70 740 CL2 AREA A/S | 28 | 3315 | LED | 2.85 | 96633539 | ||||
| OLSYS1 12L70-740 CL1 AREA A/S | 28 | 3315 | LED | 2.85 | 96633540 | ||||
| OLSYS1 18L70 730 CL1 AREA A/S | 40 | 4695 | LED | 2.85 | 96633546 | ||||
| OLSYS1 18L70 730 CL2 AREA A/S | 40 | 4695 | LED | 2.85 | 96633545 | ||||
| OLSYS1 18L70 740 CL1 AREA A/S | 40 | 4920 | LED | 2.85 | 96633542 | ||||
| OLSYS1 18L70 740 CL2 AREA A/S | 40 | 4920 | LED | 2.85 | 96633541 |
▼ Olsys 1 area, montageaccessoires
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OLSYS1 MTP 60/76 | 1.40 | 96262298 | |||||||
| OLSYS1 MTP 60/76 x2 | 2.10 | 96262299 | |||||||
| OLSYS1 SPIKE | 1.30 | 96262334 |
▼ Olsys 2 area
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| OLSYS2 36L70 730 CL1 AREA A/S | 78 | 9895 | LED | 9.85 | 96633556 | ||||
| OLSYS2 36L70 730 CL2 AREA A/S | 78 | 9895 | LED | 9.85 | 96633555 | ||||
| OLSYS2 36L70 740 CL1 AREA A/S | 78 | 10375 | LED | 9.85 | 96633552 | ||||
| OLSYS2 36L70 740 CL2 AREA A/S | 78 | 10375 | LED | 9.85 | 96633551 | ||||
| OLSYS2 48L70 730 CL1 AREA A/S | 104 | 13030 | LED | 9.85 | 96633558 | ||||
| OLSYS2 48L70 730 CL2 AREA A/S | 104 | 13030 | LED | 9.85 | 96633557 | ||||
| OLSYS2 48L70 740 CL1 AREA A/S | 104 | 13665 | LED | 9.85 | 96633554 | ||||
| OLSYS2 48L70 740 CL2 AREA A/S | 104 | 13665 | LED | 9.85 | 96633553 |
▼ Olsys 2 area, montageaccessoires
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OLSYS2 MTP 60/76 | 2.90 | 96262304 | |||||||
| OLSYS2 MTP 60/76 x2 | 5.00 | 96262305 |
