Cesar Opera, drive over

Installation et montage

Pour un montage dans le sol avec boîtier encastré inclus.
Taille maximale de câble :
- Cesar Opera Petit/Moyen HF : 3 x 1 mm² - 3 x 2,5 mm². Pré-câblé : 0,5 m
- Cesar Opera Petit/Moyen RD : 2 x 1 mm² - 2 x 2,5 mm². Pré-câblé : 0,5 m
- Cesar Opera Grand/Très grand HFX : 5 x 1 mm² - 5 x 2,5 mm². Pré-câblé : 0,5 m
Le convertisseur à distance DALI-2 doit être commandé séparément pour les petits et moyens modèles

Prescription

To specify state:

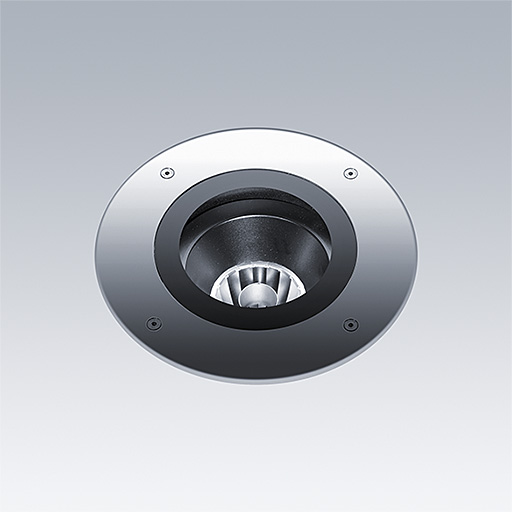

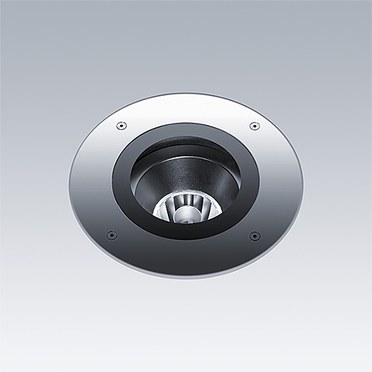

Round recessed luminaire in a drive-over version, compatible with vehicle passageways on the luminaire. Available in several sizes (S, M, L and XL) and in stainless steel finish. The flush-mounting box for installation is supplied with the luminaire. Several light distributions are available: intensive, extensive, medium (L and XL only), asymmetrical (L and XL only). The optical module can be tilted (except for the extensive beam).
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications. Non-dimmable driver integrated on S and M versions, with the option of integrating DALI2 dimming via a remote driver to be ordered separately with an RD luminaire. Integrated DALI2 driver on L and XL versions.
Robustness: IP67 & IK10.
As Thorn Cesar Opera Drive Over
