Voyager Style
Voyager Style - de ultraslanke armatuur voor noodverlichting
- Ultra slank: De Voyager Style van Thorn bewijst dat armaturen voor noodverlichting niet groot of storend hoeven te zijn. Deze ingetogen fitting is slechts 37 mm dik en past in elk interieur. De armatuur wordt eenvoudig in allerlei configuraties gemonteerd
- Opties voor de stroomvoorziening: De Voyager Style kan precies aan uw wensen voldoen, zoals batterijvermogen voor standalone armaturen voor noodverlichting of een centraal batterijsysteem
- Elegant en eenvoudig: Dankzij de vele montage-opties past de Voyager Style overal waar u noodverlichting nodig hebt. De optie voor ingebouwde montage resulteert in een zeer onopvallende armatuur
Materialen en Afwerking
Behuizing: wit polycarbonaat
Afdekking: transparant polycarbonaat
Installatie en Montage
Zonder gereedschap vast te klikken nadat de voet is gemonteerd
Specificatie
To specify state:
Flexible emergency luminaire for various mounting possibilities that can be even extended with an adapter. Only 37mm housing depth for state of the art design. Orderable as safety sign or safety luminaire. Manual, selftest, circuit controlled or SET009 (only central supply) version capability.
As Thorn Voyager Style.
New Product
LumExpress Product
eControl Product
▼ Voyager Style, vluchtwegarmatuur voor opbouwmontage, bereik 23 meter
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STYLE 115 MS E3-S SM-S WH | 0.98 | 96222359 | |||||||
| VOYAGER STYLE 115 MS E3T-S SM-S WH | 0.98 | 96222360 | |||||||
| VOYAGER STYLE 115 MS ECC SM-S WH | 0.85 | 96222361 | |||||||
| VOYAGER STYLE 115 MS ECS SM-S WH | 0.90 | 96222362 | |||||||
| VOYAGER STYLE 115 P MS E3D SM-S WH | 0.95 | 96631614 | |||||||
| VOYAGER STYLE 115 P MS ECD SM-S WH | 0.75 | 96632896 | |||||||
| VOYAGER STYLE 115 P MS ECP SM-S WH | 0.75 | 96632901 |
▼ Voyager Style, opbouwversie, bereik 30 meter
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STYLE 150 MS E3-S SM-S WH | 1.08 | 96631608 | |||||||
| VOYAGER STYLE 150 MS E3T-S SM-S WH | 1.08 | 96631609 | |||||||
| VOYAGER STYLE 150 MS ECC SM-S WH | 1.02 | 96631611 | |||||||
| VOYAGER STYLE 150 MS ECS SM-S WH | 1.01 | 96631612 | |||||||
| VOYAGER STYLE 150 P MS E3D SM-S WH | 1.30 | 96631610 | |||||||
| VOYAGER STYLE 150 P MS ECD SM-S WH | 1.13 | 96632898 | |||||||
| VOYAGER STYLE 150 P MS ECP SM-S WH | 1.16 | 96632903 |
▼ Voyager Style Suspended 23 metre range
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STYLE 115 MS-WF15 E3-S SM-S WH | 1.03 | 96222363 | |||||||
| VOYAGER STYLE 115 MS-WF15 E3T-S SM-S WH | 1.03 | 96222364 | |||||||
| VOYAGER STYLE 115 MS-WF15 ECC SM-S WH | 0.96 | 96222365 | |||||||
| VOYAGER STYLE 115 MS-WF15 ECS SM-S WH | 1.01 | 96222366 | |||||||
| VOYAGER STYLE 115 P MS-WF15 E3D SM-S WH | 0.95 | 96631615 | |||||||
| VOYAGER STYLE 115 P MS-WF15 ECD SM-S WH | 0.79 | 96632897 | |||||||
| VOYAGER STYLE 115 P MS-WF15 ECP SM-S WH | 0.79 | 96632902 |

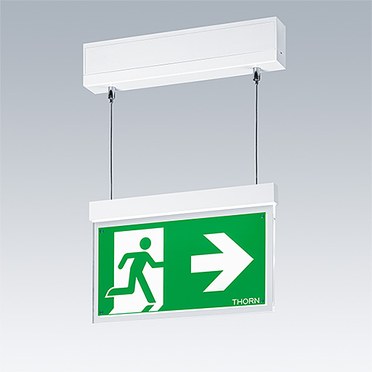

▼ Voyager Style, gependelde vluchtwegarmatuur, bereik 23 meter
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STYLE 115 MS-WF15 E3-S SM-S WH | 1.03 | 96222363 | |||||||
| VOYAGER STYLE 115 MS-WF15 E3T-S SM-S WH | 1.03 | 96222364 | |||||||
| VOYAGER STYLE 115 MS-WF15 ECC SM-S WH | 0.96 | 96222365 | |||||||
| VOYAGER STYLE 115 MS-WF15 ECS SM-S WH | 1.01 | 96222366 | |||||||
| VOYAGER STYLE 115 P MS-WF15 E3D SM-S WH | 0.95 | 96631615 | |||||||
| VOYAGER STYLE 115 P MS-WF15 ECD SM-S WH | 0.79 | 96632897 | |||||||
| VOYAGER STYLE 115 P MS-WF15 ECP SM-S WH | 0.79 | 96632902 |
▼ Voyager Style Contus, bereik 23 meter
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STYLE 115 CON E3 S WH | 0.85 | 96636573 | |||||||
| VOYAGER STYLE 115 CON E3D P WH | 0.88 | 96636575 | |||||||
| VOYAGER STYLE 115 CON E3T S WH | 0.85 | 96636574 | |||||||
| VOYAGER STYLE 115 CON ECC WH | 0.80 | 96636579 | |||||||
| VOYAGER STYLE 115 CON ECD P WH | 0.81 | 96636576 | |||||||
| VOYAGER STYLE 115 P CON ECP WH | 0.81 | 96636577 |
▼ Voyager Style Contus, bereik 30 meter
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STYLE 150 CON E3 S WH | 1.18 | 96636580 | |||||||
| VOYAGER STYLE 150 CON E3T S WH | 1.18 | 96636581 | |||||||
| VOYAGER STYLE 150 CON ECC WH | 1.12 | 96636586 | |||||||
| VOYAGER STYLE 150 P CON E3D WH | 1.20 | 96636582 | |||||||
| VOYAGER STYLE 150 P CON ECD WH | 1.14 | 96636583 | |||||||
| VOYAGER STYLE 150 P CON ECP WH | 1.16 | 96636584 |
▼ Voyager Style, accessoires
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER STYLE / ONE MSC-CORD25 | 0.20 | 96631617 | |||||||
| VOYAGER STYLE / ONE MSC-R05 | 0.13 | 96631618 | |||||||
| VOYAGER STYLE 115 BP GRID | 0.94 | 96631619 | |||||||
| VOYAGER STYLE 115 FSR WH | 0.17 | 96222371 | |||||||
| VOYAGER STYLE 115 MS90° | 0.27 | 96631622 | |||||||
| VOYAGER STYLE 150 / ONE BP GRID | 1.64 | 96631620 | |||||||
| VOYAGER STYLE 150 / ONE MS90° | 0.33 | 96631621 | |||||||
| VOYAGER STYLE 150 CCS | 1.50 | 96222697 | |||||||
| VOYAGER STYLE 150 FSR WH | 0.11 | 96631613 |
▼ Voyager Style Spares
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| <Voyager Style 115 Ballast ECP | 0.06 | 59011002 | |||||||
| Voyager Style 115 Ballast ECD | 0.06 | 59010999 | |||||||
| Voyager Style 150 Ballast ECD | 0.05 | 59011000 | |||||||
| Voyager Style 150 Ballast ECP | 0.06 | 59011003 | |||||||
| Voyager Style ACCU 3h | 0.10 | 59009397 |
