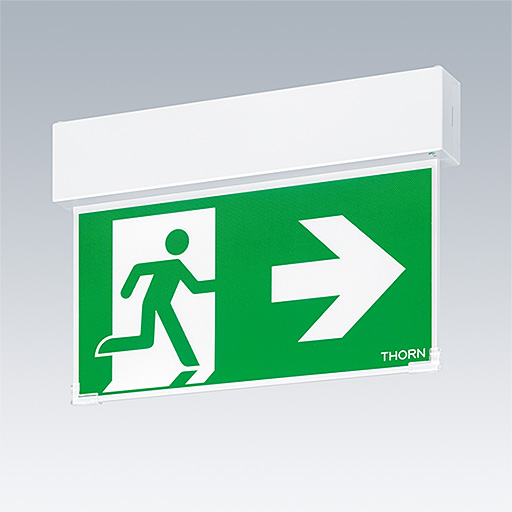

Voyager Blade 2
Elegant en eenvoudig
- Meerdere montageopties: Opbouwmontage in wanden en plafonds, ingebouwde plafonds, verlaagde plafonds, 90 ° t.o.v. wanden
- Elke accessoire past op elke armatuurvariant doordat voor elke zichtbaarheidsafstand dezelfde basisbehuizing geldt
- De pictogrammen "omhoog, links, rechts, omlaag" worden meegeleverd
- Autonome noodverlichting te selecteren voor 1, 2, 3 of 8 uur (voor handmatige en zelf-test) door eenvoudig de instellingen van de dipschakelaar te veranderen
- Testopties: De standalone Voyager Blade 2 is verkrijgbaar met handmatige, zelf- en DALI-testoptie
Materialen en Afwerking
Behuizing: wit polycarbonaat
Kap: transparant polycarbonaat
Installatie en Montage
Zonder gereedschap vast te klikken nadat de voet is gemonteerd
Specificatie
To specify state:
Flexible safety sign luminaire for various mounting possibilities for recognition ranges 23m and 30m. Self-contained luminaire with selectable autonomy durations 1/3h. Manual test, self-test and DALI test version capability. IP40. Class II electrical.
As Thorn Voyager Blade 2
New Product
LumExpress Product
eControl Product
▼ Voyager Blade 2, opbouwversie, bereik 23 meter
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER BLADE 2 115 MS E1/3 BK | LED | 0.60 | 96637605 | ||||||
| VOYAGER BLADE 2 115 MS E1/3 WH | LED | 0.60 | 96637597 | ||||||
| VOYAGER BLADE 2 115 MS E1/3BC BK | LED | 0.65 | 96637608 | ||||||
| VOYAGER BLADE 2 115 MS E1/3BC WH | LED | 0.65 | 96637600 | ||||||
| VOYAGER BLADE 2 115 MS E1/3D BK | LED | 0.60 | 96637607 | ||||||
| VOYAGER BLADE 2 115 MS E1/3D WH | LED | 0.60 | 96637599 | ||||||
| VOYAGER BLADE 2 115 MS E1/3T BK | LED | 0.60 | 96637606 | ||||||
| VOYAGER BLADE 2 115 MS E1/3T WH | LED | 0.60 | 96637598 | ||||||
| VOYAGER BLADE 2 115 MS ECD WH | 0.80 | 96637564 | |||||||
| VOYAGER BLADE 2 115 P MS ECP WH | 0.80 | 96637565 | |||||||
| VOYAGER BLADE 2 115 P MS ELP WH | 0.80 | 96637566 |
▼ Voyager Blade 2 opbouwversie, bereik 30 meter
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER BLADE 2 150 MS E1/3 BK | LED | 0.80 | 96637609 | ||||||
| VOYAGER BLADE 2 150 MS E1/3 WH | LED | 0.80 | 96637601 | ||||||
| VOYAGER BLADE 2 150 MS E1/3BC BK | LED | 0.85 | 96637612 | ||||||
| VOYAGER BLADE 2 150 MS E1/3BC WH | LED | 0.85 | 96637604 | ||||||
| VOYAGER BLADE 2 150 MS E1/3D BK | LED | 0.80 | 96637611 | ||||||
| VOYAGER BLADE 2 150 MS E1/3D WH | LED | 0.80 | 96637603 | ||||||
| VOYAGER BLADE 2 150 MS E1/3T BK | LED | 0.80 | 96637610 | ||||||
| VOYAGER BLADE 2 150 MS E1/3T WH | LED | 0.80 | 96637602 | ||||||
| VOYAGER BLADE 2 150 MS ECD WH | 0.90 | 96637568 | |||||||
| VOYAGER BLADE 2 150 P MS ECP WH | 0.90 | 96637569 | |||||||
| VOYAGER BLADE 2 150 P MS ELP WH | 0.90 | 96637570 |
▼ Voyager BLADE 2 Contus bereik 23 meter
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER BLADE 2 115 CON E1/3 BK | LED | 1.14 | 96637621 | ||||||
| VOYAGER BLADE 2 115 CON E1/3 WH | LED | 1.14 | 96637613 | ||||||
| VOYAGER BLADE 2 115 CON E1/3BC BK | LED | 1.19 | 96637624 | ||||||
| VOYAGER BLADE 2 115 CON E1/3BC WH | LED | 1.19 | 96637616 | ||||||
| VOYAGER BLADE 2 115 CON E1/3D BK | LED | 1.14 | 96637623 | ||||||
| VOYAGER BLADE 2 115 CON E1/3D WH | LED | 1.14 | 96637615 | ||||||
| VOYAGER BLADE 2 115 CON E1/3T BK | LED | 1.14 | 96637622 | ||||||
| VOYAGER BLADE 2 115 CON E1/3T WH | LED | 1.14 | 96637614 | ||||||
| VOYAGER BLADE 2 115 CON ECD WH | 1.05 | 96636560 | |||||||
| VOYAGER BLADE 2 115 P CON ECP WH | 1.05 | 96636561 | |||||||
| VOYAGER BLADE 2 115 P CON ELP WH | 1.05 | 96636562 |
▼ Voyager BLADE 2 Contus, bereik 30 meter
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER BLADE 2 150 CON E1/3 BK | LED | 1.27 | 96637625 | ||||||
| VOYAGER BLADE 2 150 CON E1/3 WH | LED | 1.27 | 96637617 | ||||||
| VOYAGER BLADE 2 150 CON E1/3BC BK | LED | 1.32 | 96637628 | ||||||
| VOYAGER BLADE 2 150 CON E1/3BC WH | LED | 1.32 | 96637620 | ||||||
| VOYAGER BLADE 2 150 CON E1/3D BK | LED | 1.27 | 96637627 | ||||||
| VOYAGER BLADE 2 150 CON E1/3D WH | LED | 1.27 | 96637619 | ||||||
| VOYAGER BLADE 2 150 CON E1/3T BK | LED | 1.27 | 96637626 | ||||||
| VOYAGER BLADE 2 150 CON E1/3T WH | LED | 1.27 | 96637618 | ||||||
| VOYAGER BLADE 2 150 CON ECD WH | 1.15 | 96636568 | |||||||
| VOYAGER BLADE 2 150 P CON ECP WH | 1.15 | 96636569 | |||||||
| VOYAGER BLADE 2 150 P CON ELP WH | 1.15 | 96636570 |
▼ Voyager Blade 2, accessoires
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER BLADE 2 FSR WH | 0.30 | 96633310 | |||||||
| VOYAGER BLADE 2 MS90° WH | 0.25 | 96633309 | |||||||
| VOYAGER BLADE 2 MSC-Cord20 | 0.20 | 96633311 |
▼ Voyager Blade 2, reserveonderdelen
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| EMpowerLED E3D 1/350mA | 0.07 | 59012020 | |||||||
| VOYAGER BLADE 2 115 LEGENDSET SM-S | 0.13 | 59011294 | |||||||
| VOYAGER BLADE 2 150 LEGENDSET SM-S | 0.17 | 59011295 | |||||||
| VOYAGER BLADE 2 E3D ACCU | 0.16 | 59011291 | |||||||
| VOYAGER BLADE2 ACCU LiFePo4 1/3h | 0.05 | 59013699 | |||||||
| VOYAGER BLADE2 E1/3 CONVERTER | 0.06 | 59013702 | |||||||
| VOYAGER BLADE2 E1/3D CONVERTER | 0.06 | 59013704 | |||||||
| VOYAGER BLADE2 E1/3T CONVERTER | 0.06 | 59013703 |
