Isaro
Discrete en flexibele lantaarn voor weg- en straatverlichting met duurzame hoge prestaties

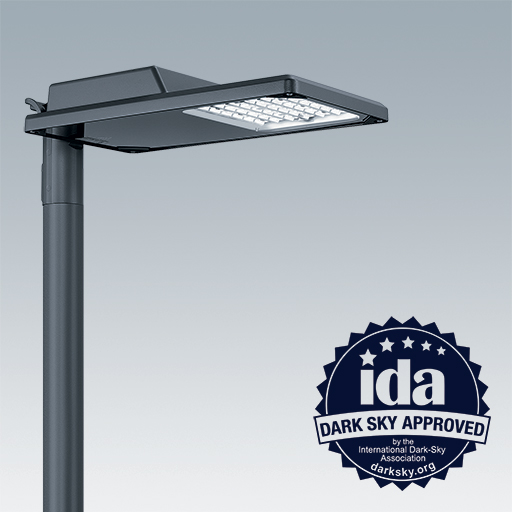

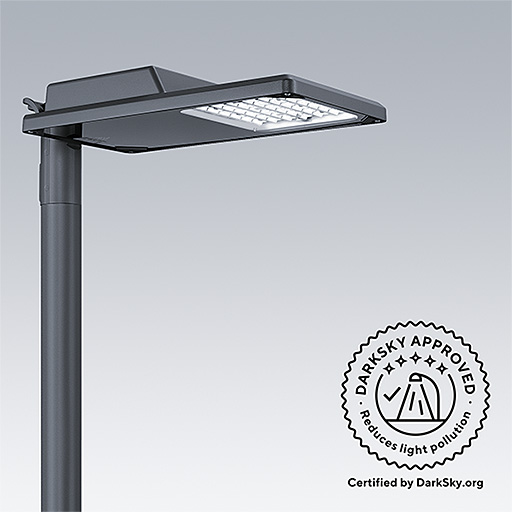

- IDA goedgekeurd voor anti-lichtvervuiling
- *Het IDA-keurmerk voor de fitting heeft alleen betrekking op <= 3000 K en doorzichtige kappen, kanteling slechts maximaal 10° meer of minder. Armaturen dienen te worden gemonteerd als gemeten door een fotometer.
- Ontworpen voor maximale verlichtingsprestatie en optimale kringloopmogelijkheden, met verlaging van de CO2-voetafdruk.
- Betrouwbaar en flexibel: behuizing van hoogwaardig gietaluminium EN AC 44300 en schroeven behandeld met Geomet anti-galvanische coating, met ruime keuze aan lichtspreiding, bediening, bescherming, bedrading en kleuren
- Hoogste corrosiebestendigheid volgens EN ISO 9223: Klasse 5
- Lichtgewicht, voorbekabeld naar behoeften voor installatiegemak
Materialen en Afwerking
Behuizing, insteekeinde: gietaluminium EN AC 44300, schroeven behandeld met Geomet anti-galvanische coating, poedercoating in getextureerd lichtgrijs (GY), insteekeinde gelakt. Via de configurator: Getextureerd zwart (BK), getextureerd antraciet (ANT) en 48 andere RAL-kleuren. Standaard corrosieklasse C5 conform ISO 9223: 2012.
Glas: Gehard glas, 4 of 5 mm dik
Bevestigingen: roestvrij staal, met anti-galvanische behandeling
Installatie en Montage
Installatie tot 15 m hoogte
• Veelzijdige kanteltechnologie, lateraal (-15°/+15°) en paaltop (0°/+20°)
• Verstelbare hoek in stappen van 5° voor optimale lichtverdeling en gelijkmatigheid
• Universeel bevestigingsstuk voor laterale en paaltopmontage
• Standaard geschikt voor toepassing in kustgebieden dankzij corrosiebestendigheidsklasse C5 (ISO 9223:2012)
• Voorbekabeld voor installatiegemak op elke paalhoogte. Optioneel met IP67-snelconnector bij behoud van paalkabel (renovatie)
Specificatie
To specify state:
IP66, 2 sizes, corrosion resistant Class 5 (EN ISO 9223) road lighting lantern with great versatility for even coastal applications. With up to 6000 Llm (Extra Small size) and 17000 Lm (Small size), efficiency up to 170 Llm/W. Optimised dimensions, low windage area : 0,028 m² (XS size) and 0,041 m² (S size). Extra White toughened glass underneath (4mm thickness as standard). Option for High Transmission glass (H). IK possibilities : IK08 and IK10 (option). Electrical class 1 and class 2. Mounting options : post top, lateral. Wide optical offer with efficient Street R-PEC optical system, 20 R-PEC light distributions. 2200 K / 2400 K / 2700 K / 3000 K /4000 K / 5700 K colour temperatures, as standard. CRI 70 or 80. Internal back light control louvre.6 kV multi-pulse and 8 kV (3 pulses) as driver standard protection. Option for 10kV/10kA surge protection multi pulse and 20kV single pulse. Option for LED optic lining (M). Post top reversible spigot pre-assembled for diameter 60mm or 76mm post top mounting and diameter 60mm or 42 mm lateral mounting. Tilting possibilities for lateral (-20°/0°) and for post top (0°/+15°). A large choice of colour painting as standard : Texturized light grey (GY) by default - Texturized black (BK), Texturized anthracite (ANT), 48 other RAL possibilities. Pre-wired according to needs through configurator with lengths of cable from 3 to 16m. Option with quick connector IP67 M/F for refurbishment with existing cables retained.
DALI dimmable(HFX) / Bi-Power (BP) / Constant Light Output (CLO)/Light Reduction Twin Phases (LRT). Zhaga interface Up (ZU) / N7 Integral Nema socket - 7 pin, both ZD4i certified.
As Thorn Isaro
▼ Isaro extra klein, optiek voor smalle wegen
Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IS 12L105-730 NR CL2 WS7 T60F GY | 41 | 4736 | LED | 3.76 | 96634354 | ||||
IS 12L25-730 NR CL2 WS7 T60F GY | 11 | 1342 | LED | 3.71 | 96634349 | ||||
IS 12L35-730 NR CL2 WS7 T60F GY | 14 | 1821 | LED | 3.71 | 96634350 | ||||
IS 12L50-730 NR CL2 WS7 T60F GY | 20 | 2510 | LED | 3.76 | 96634351 | ||||
IS 12L70-730 NR CL2 WS7 T60F GY | 27 | 3375 | LED | 3.76 | 96634352 | ||||
IS 12L85-730 NR CL2 WS7 T60F GY | 33 | 3983 | LED | 3.76 | 96634353 |
▼ Isaro klein, optiek voor smalle wegen
Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IS 24L105-730 NR CL2 WS7 T60F GY | 79 | 9735 | LED | 4.59 | 96634360 | ||||
IS 24L25-730 NR CL2 WS7 T60F GY | 19 | 2786 | LED | 4.72 | 96634355 | ||||
IS 24L35-730 NR CL2 WS7 T60F GY | 26 | 3776 | LED | 4.72 | 96634356 | ||||
IS 24L50-730 NR CL2 WS7 T60F GY | 37 | 5198 | LED | 4.72 | 96634357 | ||||
IS 24L70-730 NR CL2 WS7 T60F GY | 52 | 6975 | LED | 4.72 | 96634358 | ||||
IS 24L85-730 NR CL2 WS7 T60F GY | 64 | 8213 | LED | 4.59 | 96634359 | ||||
IS 36L105-730 NR CL2 WS7 T60F GY | 117 | 14446 | LED | 5.30 | 96634366 | ||||
IS 36L25-730 NR CL2 WS7 T60F GY | 29 | 4170 | LED | 4.78 | 96634361 | ||||
IS 36L35-730 NR CL2 WS7 T60F GY | 39 | 5652 | LED | 4.78 | 96634362 | ||||
IS 36L50-730 NR CL2 WS7 T60F GY | 55 | 7775 | LED | 4.97 | 96634363 | ||||
IS 36L70-730 NR CL2 WS7 T60F GY | 76 | 10411 | LED | 5.08 | 96634364 | ||||
IS 36L85-730 NR CL2 WS7 T60F GY | 94 | 12228 | LED | 5.30 | 96634365 |
