EyeKon LED
Energie-efficiënte, robuuste en schokbestendige LED wandarmaturen
- Verkrijgbaar in twee maten, vier ontwerpen en drie kleuropties
- Lumenpakketten van 400 tot 1550 lumen bieden mogelijkheden voor bredere tussenruimtes zonder donkere gebieden te laten
- Aanwezigheidsdetectie, die zal inschakelen wanneer de sensor geactiveerd wordt, om de ruimte te verlichten
- Een speciale functie voor gangen die het mogelijk maakt om te dimmen tot 10% en om te schakelen naar 100% wanneer er iemand op de gang komt, om zo energiebesparingen te maximaliseren
Materialen en Afwerking
Housing and decorative feature (bezel, cross, halo and visor): die-cast aluminium (EN AC-44300, standard corrosion class: C3).
Diffuser: opal polycarbonate
Reflector in aluminium for Visor/Halo, sheet steel for Bezel/Cross
Gaskets: extruded silicone rubber sponge
Installatie en Montage
Wand- of plafondmontage (behalve 38/42WE3/E3TX versies) met centrale BESA aansluitmogelijkheid en vier bevestigingspunten (2 horizontale gaten om te verstellen, extra gaten voor veiligheid of onregelmatige oppervlakken). Twee kabelingangen aan achter- of zijkant (niet voor kabelbuisinvoer te gebruienk) in 3-polig klemmenblok (2x2.5mm²) (4-polig voor E3 versies, 6-polig voor E3TX versies). Looping mogelijk. Afzonderlijke VSA-unit beveiligd met twee schroeven. Vandaalbestendige schroeven, torx sleutel meegeleverd met elke armatuur.
Specificatie
Wandarmatuur met gegoten zwart/zilvergrijs/antraciet/wit aluminium armatuur en opaal polycarbonaat diffusor. IP65. IK10/dubbel wandontwerp waarmee de kabel uit het zicht blijft. Rond groot/klein met sierring/kruis/aureool-vizier/vizier. Met nood-/aanwezigheidssensor/energiebesparende opties.
Als Thorn EyeKon LED.
New Product
LumExpress Product
eControl Product
▼ Eyekon LED Small, met ring, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE BE LED1100-830 HF S ANT | 11 | 1050 | LED | 2.30 | 96665956 | ||||
| EYE BE LED1100-840 HF S ANT | 11 | 1150 | LED | 2.30 | 96665878 | ||||
| EYE BE LED1100-840 MWS S ANT | 11 | 1150 | LED | 2.40 | 96665879 | ||||
| EYE BE LED700-830 HF S ANT | 7 | 660 | LED | 2.30 | 96665954 | ||||
| EYE BE LED700-840 HF S ANT | 7 | 725 | LED | 2.30 | 96665862 | ||||
| EYE BE LED700-840 MWS S ANT | 7 | 725 | LED | 2.40 | 96665863 |
▼ Eyekon LED Small, met ring, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE BE LED1100-840 HF E3 S ANT | 11 | 1150 | LED | 2.60 | 96665880 | ||||
| EYE BE LED1100-840 MWS E3 S ANT | 11 | 1150 | LED | 2.70 | 96665881 | ||||
| EYE BE LED700-840 HF E3 S ANT | 7 | 725 | LED | 2.60 | 96665864 | ||||
| EYE BE LED700-840 MWS E3 S ANT | 7 | 725 | LED | 2.70 | 96665865 |

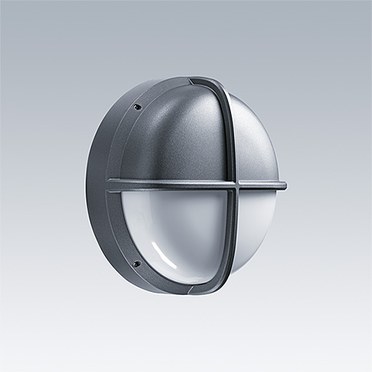

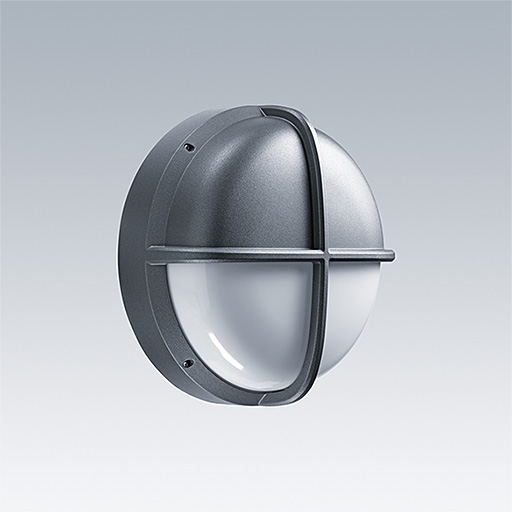

▼ Eyekon LED Small, met kruis, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE CR LED600-830 HF S ANT | 7 | 565 | LED | 2.50 | 96665953 | ||||
| EYE CR LED600-840 HF S ANT | 7 | 620 | LED | 2.50 | 96665858 | ||||
| EYE CR LED600-840 MWS S ANT | 7 | 620 | LED | 2.60 | 96665859 | ||||
| EYE CR LED950-830 HF S ANT | 11 | 905 | LED | 2.50 | 96665955 | ||||
| EYE CR LED950-830 MWS S ANT | 11 | 905 | LED | 2.80 | 92900969 | ||||
| EYE CR LED950-840 HF S ANT | 11 | 990 | LED | 2.50 | 96665874 | ||||
| EYE CR LED950-840 MWS S ANT | 11 | 990 | LED | 2.60 | 96665875 |
▼ Eyekon LED Small, met kruis, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE CR LED600-840 HF E3 S ANT | 7 | 620 | LED | 2.80 | 96665860 | ||||
| EYE CR LED600-840 MWS E3 S ANT | 7 | 620 | LED | 2.90 | 96665861 | ||||
| EYE CR LED950-840 HF E3 S ANT | 11 | 990 | LED | 2.80 | 96665876 | ||||
| EYE CR LED950-840 MWS E3 S ANT | 11 | 990 | LED | 2.90 | 96665877 |
▼ Eyekon LED Small, met halo-vizier, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE HA LED400-830 HF S ANT | 7 | 400 | LED | 2.50 | 96665952 | ||||
| EYE HA LED400-840 HF S ANT | 7 | 435 | LED | 2.50 | 96665850 | ||||
| EYE HA LED400-840 MWS S ANT | 7 | 435 | LED | 2.60 | 96665851 | ||||
| EYE HA LED700-830 HF S ANT | 11 | 640 | LED | 2.50 | 96628454 | ||||
| EYE HA LED700-840 HF S ANT | 11 | 700 | LED | 2.50 | 96665866 | ||||
| EYE HA LED700-840 MWS S ANT | 11 | 700 | LED | 2.60 | 96665867 |
▼ Eyekon LED Small, met halo-vizier, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE HA LED400-840 HF E3 S ANT | 7 | 435 | LED | 2.80 | 96665852 | ||||
| EYE HA LED400-840 MWS E3 S ANT | 7 | 435 | LED | 2.90 | 96665853 | ||||
| EYE HA LED700-840 HF E3 S ANT | 11 | 700 | LED | 2.80 | 96665868 | ||||
| EYE HA LED700-840 MWS E3 S ANT | 11 | 700 | LED | 2.90 | 96665869 |
▼ Eyekon LED Small, met vizier, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE VS LED400-830 HF S ANT | 7 | 400 | LED | 2.50 | 96628455 | ||||
| EYE VS LED400-840 HF S ANT | 7 | 435 | LED | 2.50 | 96665854 | ||||
| EYE VS LED400-840 MWS S ANT | 7 | 435 | LED | 2.60 | 96665855 | ||||
| EYE VS LED700-830 HF S ANT | 11 | 640 | LED | 2.50 | 96628456 | ||||
| EYE VS LED700-840 HF S ANT | 11 | 700 | LED | 2.50 | 96665870 | ||||
| EYE VS LED700-840 MWS S ANT | 11 | 700 | LED | 2.60 | 96665871 |
▼ Eyekon LED Small, met vizier, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE VS LED400-830 MWS E3 S ANT | 7 | 400 | LED | 2.45 | 96666049 | ||||
| EYE VS LED400-830 MWS E3TX S ANT | 7 | 400 | LED | 2.44 | 96666050 | ||||
| EYE VS LED400-840 HF E3 S ANT | 7 | 435 | LED | 2.80 | 96665856 | ||||
| EYE VS LED400-840 MWS E3 S ANT | 7 | 435 | LED | 2.90 | 96665857 | ||||
| EYE VS LED700-830 HF E3 S ANT | 11 | 640 | LED | 2.42 | 96666055 | ||||
| EYE VS LED700-830 HF E3TX S ANT | 11 | 640 | LED | 3.43 | 96666056 | ||||
| EYE VS LED700-840 HF E3 S ANT | 11 | 700 | LED | 2.80 | 96665872 | ||||
| EYE VS LED700-840 MWS E3 S ANT | 11 | 700 | LED | 2.90 | 96665873 |
▼ Eyekon LED Large, met ring, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE BE LED1150-830 HF L ANT | 11 | 1050 | LED | 3.30 | 96665958 | ||||
| EYE BE LED1150-840 HF L ANT | 11 | 1165 | LED | 3.30 | 96665894 | ||||
| EYE BE LED1150-840 MWS L ANT | 11 | 1165 | LED | 3.40 | 96665895 | ||||
| EYE BE LED1550-830 HF L ANT | 16 | 1435 | LED | 3.30 | 96665961 | ||||
| EYE BE LED1550-840 HF L ANT | 16 | 1575 | LED | 3.30 | 96665910 | ||||
| EYE BE LED1550-840 MWS L ANT | 16 | 1575 | LED | 3.40 | 96665911 |
▼ Eyekon LED Large, met ring, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE BE LED1150-840 HF E3 L ANT | 11 | 1165 | LED | 3.60 | 96665896 | ||||
| EYE BE LED1150-840 MWS E3 L ANT | 11 | 1165 | LED | 3.70 | 96665897 | ||||
| EYE BE LED1550-840 HF E3 L ANT | 16 | 1575 | LED | 3.60 | 96665912 | ||||
| EYE BE LED1550-840 MWS E3 L ANT | 16 | 1575 | LED | 3.70 | 96665913 |
▼ Eyekon LED Large, met kruis, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE CR LED1000-830 HF L ANT | 11 | 890 | LED | 3.50 | 96665959 | ||||
| EYE CR LED1000-840 HF L ANT | 11 | 975 | LED | 3.50 | 96665890 | ||||
| EYE CR LED1000-840 MWS L ANT | 11 | 975 | LED | 3.60 | 96665891 | ||||
| EYE CR LED1350-830 HF L ANT | 16 | 1210 | LED | 3.50 | 96665960 | ||||
| EYE CR LED1350-840 HF L ANT | 16 | 1320 | LED | 3.50 | 96665906 | ||||
| EYE CR LED1350-840 MWS L ANT | 16 | 1320 | LED | 3.60 | 96665907 |
▼ Eyekon LED Large, met kruis, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE CR LED1000-840 HF E3 L ANT | 11 | 975 | LED | 3.80 | 96665892 | ||||
| EYE CR LED1000-840 MWS E3 L ANT | 11 | 975 | LED | 3.90 | 96665893 | ||||
| EYE CR LED1350-840 HF E3 L ANT | 16 | 1320 | LED | 3.80 | 96665908 | ||||
| EYE CR LED1350-840 MWS E3 L ANT | 16 | 1320 | LED | 3.90 | 96665909 |
▼ Eyekon LED Large, met halo-vizier, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE HA LED1050-830 HF L ANT | 16 | 965 | LED | 3.50 | 96628457 | ||||
| EYE HA LED1050-840 HF L ANT | 16 | 1050 | LED | 3.50 | 96665898 | ||||
| EYE HA LED1050-840 MWS L ANT | 16 | 1050 | LED | 3.60 | 96665899 | ||||
| EYE HA LED750-830 HF L ANT | 11 | 690 | LED | 3.50 | 96665957 | ||||
| EYE HA LED750-840 HF L ANT | 11 | 750 | LED | 3.50 | 96665882 | ||||
| EYE HA LED750-840 MWS L ANT | 11 | 750 | LED | 3.60 | 96665883 |
▼ Eyekon LED Large, met halo-vizier, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE HA LED1050-840 HF E3 L ANT | 16 | 1050 | LED | 3.80 | 96665900 | ||||
| EYE HA LED1050-840 MWS E3 L ANT | 16 | 1050 | LED | 3.90 | 96665901 | ||||
| EYE HA LED750-840 HF E3 L ANT | 11 | 750 | LED | 3.80 | 96665884 | ||||
| EYE HA LED750-840 MWS E3 L ANT | 11 | 750 | LED | 3.90 | 96665885 |
▼ Eyekon LED Large, met vizier, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE VS LED1000-830 HF L ANT | 16 | 900 | LED | 3.50 | 96628459 | ||||
| EYE VS LED1000-840 HF L ANT | 16 | 990 | LED | 3.50 | 96665902 | ||||
| EYE VS LED1000-840 MWS L ANT | 16 | 990 | LED | 3.60 | 96665903 | ||||
| EYE VS LED750-830 HF L ANT | 11 | 690 | LED | 3.50 | 96628458 | ||||
| EYE VS LED750-840 HF L ANT | 11 | 750 | LED | 3.50 | 96665886 | ||||
| EYE VS LED750-840 MWS L ANT | 11 | 750 | LED | 3.60 | 96665887 |
▼ Eyekon LED Large, met vizier, noodverlichting, antraciet
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| EYE VS LED1000-830 COR MWS E3 L ANT | 16 | 900 | LED | 2.44 | 96666069 | ||||
| EYE VS LED1000-830 COR MWS E3TX L ANT | 16 | 900 | LED | 3.17 | 96666070 | ||||
| EYE VS LED1000-830 MWS E3 L ANT | 16 | 900 | LED | 3.47 | 96666067 | ||||
| EYE VS LED1000-830 MWS E3TX L ANT | 16 | 900 | LED | 2.28 | 96666068 | ||||
| EYE VS LED1000-840 HF E3 L ANT | 16 | 990 | LED | 3.80 | 96665904 | ||||
| EYE VS LED1000-840 MWS E3 L ANT | 16 | 990 | LED | 3.90 | 96665905 | ||||
| EYE VS LED750-830 COR MWS E3 L ANT | 11 | 690 | LED | 3.44 | 96666063 | ||||
| EYE VS LED750-830 COR MWS E3TX L ANT | 11 | 690 | LED | 3.48 | 96666064 | ||||
| EYE VS LED750-830 MWS E3 L ANT | 11 | 690 | LED | 3.50 | 96666061 | ||||
| EYE VS LED750-830 MWS E3TX L ANT | 11 | 690 | LED | 3.46 | 96666062 | ||||
| EYE VS LED750-840 HF E3 L ANT | 11 | 750 | LED | 3.80 | 96665888 | ||||
| EYE VS LED750-840 MWS E3 L ANT | 11 | 750 | LED | 3.90 | 96665889 |
▼ EyeKon LED, bolderarmaturen
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| EYE BOLLARD SMALL ANT | 9.00 | 96207085 |
