  • Axyl Stride — AXYL STRIDE M SE 28L 927 A/S HF BK

Axyl Stride / AXYL STRIDE M SE 28L 927 A/S HF BK

96700547

▼ Data Sheet

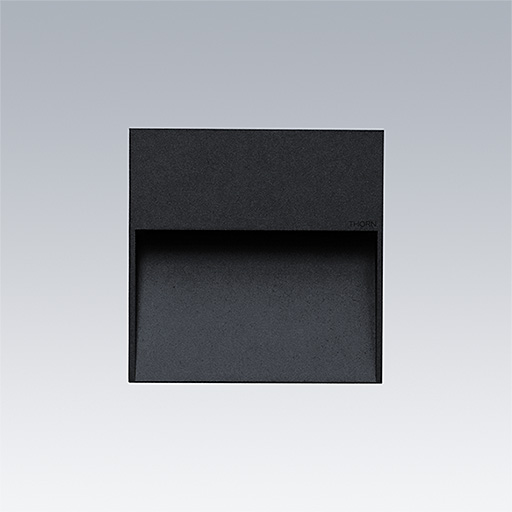

Axyl Stride, Square (M size), a wall mounted, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. , IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +40°C. Complete with 2700K LED..

Dimensions: 200 x 32 x 200 mm
Luminaire input power: 10.1 W
Luminaire luminous flux: 362 lm
Luminaire efficacy: 36 lm/W
Weight: 1.36 kg

Mode selectie
    • CE
    • IK08
    • IP65
    • SC1

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
