  • Axyl Greet W — AXYL GREETW L U/D 56L 940 WB RD WH

Axyl Greet W / AXYL GREETW L U/D 56L 940 WB RD WH

96701660

▼ Data Sheet

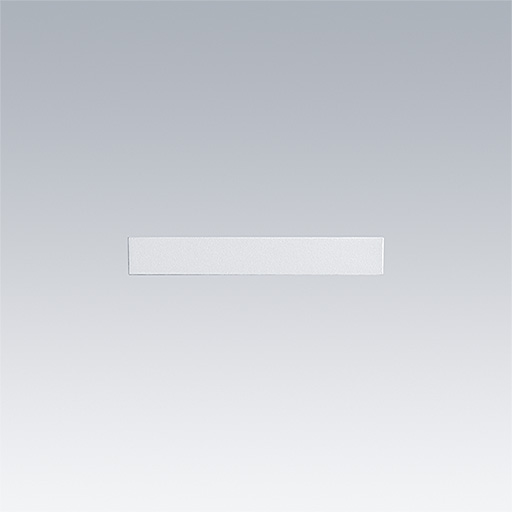

Axyl Greet W, large up&down, a wall mounted, architectural LED luminaire for decorative facade lighting, with wide beam up and down distribution. Class III electrical.. DALI-2 dimmable Remote LED driver. , IP65, Impact strength: IK04. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 4000K LED..

Dimensions: 290 x 105 x 43 mm
Luminaire input power: 12.1 W
Luminaire luminous flux: 1081 lm
Luminaire efficacy: 89 lm/W
Weight: 1.66 kg

Mode selectie
    • CE
    • IK04
    • IP65
    • SC3

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
