  • Axyl Glow — AXYL GLOW S U/D 2L927 WB RD GY

Axyl Glow / AXYL GLOW S U/D 2L927 WB RD GY

96701296

▼ Data Sheet

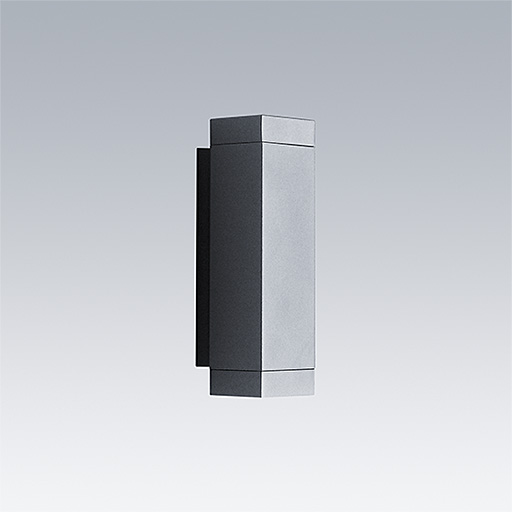

Axyl Glow, small up & down, a wall mounted, architectural LED luminaire for decorative facade lighting, 2 window with wide beam up and down distribution. Class III electrical.. DALI-2 dimmable Remote LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..

Dimensions: 60 x 200 x 72 mm
Luminaire input power: 5.4 W
Luminaire luminous flux: 180 lm
Luminaire efficacy: 33 lm/W
Weight: 1.4 kg

Mode selectie
    • CE
    • IK06
    • IP65
    • SC3

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
