  • Axyl Glow — AXYL GLOW S U/D 2L930 WB HF BK

Axyl Glow / AXYL GLOW S U/D 2L930 WB HF BK

96700163

▼ Data Sheet

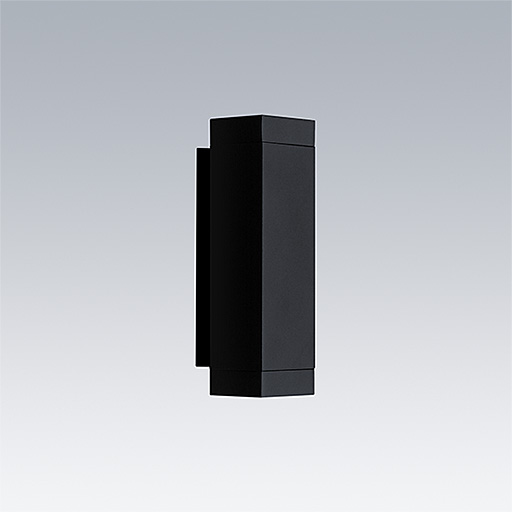

Axyl Glow, small up & down, a wall mounted, architectural LED luminaire for decorative facade lighting, 2 window with wide beam up and down distribution. Class II electrical.. Fixed output LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +50°C. Complete with 3000K LED..

Dimensions: 60 x 200 x 72 mm
Luminaire input power: 5.4 W
Luminaire luminous flux: 190 lm
Luminaire efficacy: 35 lm/W
Weight: 1.4 kg

Mode selectie
    • CE
    • IK06
    • IP65
    • SC2

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
