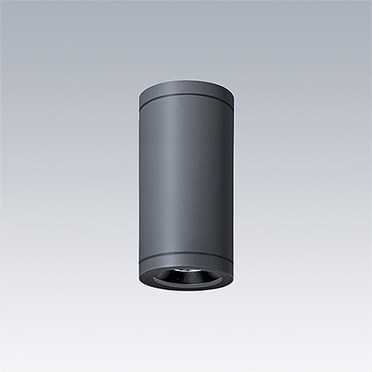

Cesar Amp plafond

Installatie en Montage

De Small-uitvoering is geschikt voor plafondmontage met 2 bevestigingspunten voor een nauwkeurige positionering.
De uitvoeringen medium en large zijn geschikt voor plafondmontage met 3 langwerpige bevestigingspunten voor positionering. Bevestigingsankers en schroeven zijn niet meegeleverd.
Kabelgrootte:
Small HF: 3x1 mm² - 3x1,5 mm²
Small RD: 2x1 mm² - 2x1,5 mm²
Medium HF: 3x1 mm² - 3x2,5 mm²
Medium RD: 2x1 mm² - 2x2,5 mm²
Large: 5x1,5 mm²
DALI-2-driver op afstand is apart te bestellen.

Specificatie

To specify state:
A round ceiling light available in three sizes (small, medium and large) and four standard colours (grey, anthracite, black and white). Cesar Amp is also available as a wall light to give a visual identity to the entire project. The (adjustable) LED block recessed inside the wall light provides visual comfort and glare control while offering extensive light distribution. Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential applications and building entrances.
Integrated non-dimmable driver for small and medium versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire. Integrated DALI2 driver on large versions.
Robustness: IP65 & IK08.
Dark-Sky certified.
As Thorn Cesar Amp Ceiling
