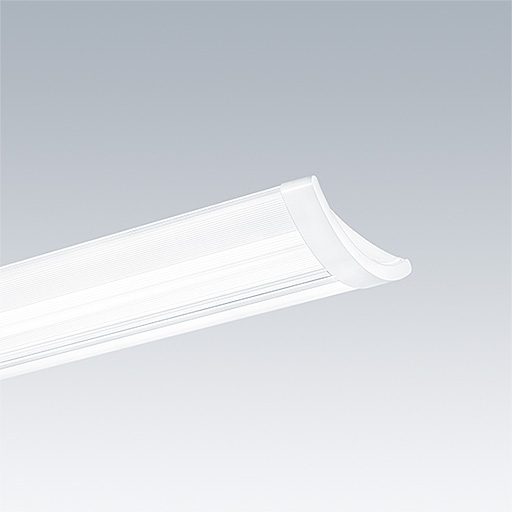

IQ Wave SP / IQ SURF L LED6700-830 HFIX ASY

96629310

Data Sheet

Een lichtgewicht Opbouw led-armatuur met MV Tech asymmetrisch optiek. Elektronisch, DALI dimbare aansturing (onbekend). elektrische Klasse I, IP40, IK05. Element, diffusor, frame en muurbeugels: polycarbonaat (PC) afgewerkt in wit (gelijkend op RAL9016). Voorschakelapparatuur: voorgecoatwit staal. Compleet met 3000K LED

Afmetingen 1440 x 210 x 70 mm
Armatuurvermogen: 61 W


gewicht: 5,1 kg

Mode selectie
  • Lamppositie:STD - standaard
  • Lichtbron:LED
  • Kleurweergave-index min.:80
  • Voorschakelapparaat:1 x 28000657 LCA 75W 100-400mA one4all lp PRE
  • Gecorreleerde kleurtemperatuur*:3000 Kelvin
  • Kleurlocatietolerantie (initiële MacAdam):3
  • Opgegeven gemiddelde levensduur*:L90 50000 h bij 25 °C
  • Armatuurvermogen*:61 W Vermogensfactor = 0,92
  • Stand-byvermogen*:0,2 W
  • Sturing:DA2 dimbaar tot 3%
  • onderhoudscategorie CIE 97:C - Bovenaan gesloten reflector
  • Total harmonic distortion (THD):7,80 %
  • LED
  • CE
  • GLedReP
  • 650°
  • IK05
  • IP40
  • LLedNr
  • SC1
  • Ta= -20 to +25

Photometry

Fotometrische configuratie
