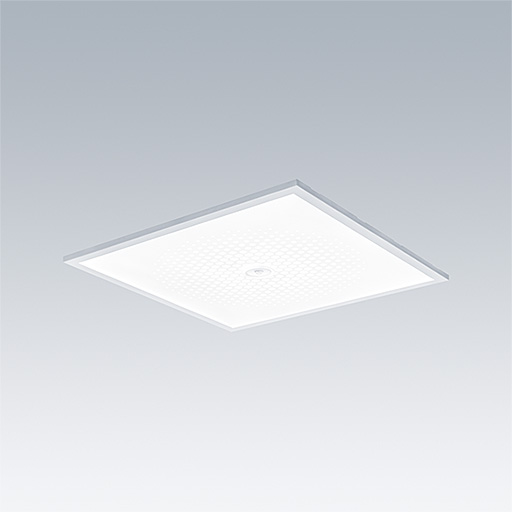

Omega Pro 2

Installatie en Montage

Inleg: de Omega Pro-led is geschikt voor inleginstallatie in plafonds met zichtbare T-profielen (15 of 24 mm).
Plafonds met onzichtbare T-profielen: installatieaccessoires voor plafonds met onzichtbare T-profielen zijn apart te bestellen.
Gipsplatenplafonds: installatieaccessoires voor gipsplatenplafonds zijn apart te bestellen.
Opbouwmontage: kraagtype - bevestigd aan het plafond met 4 schroeven via sleutelplaatgleuven. Het product wordt ingelegd.
Pendelmontage: via afstelbare pendeldraad (1500 mm), 4 bevestigingspunten aan het plafond.

Specificatie

To specify state:
A shallow, versatile edge lit panel for lay-in, concealed and plasterboard ceilings as well as for surface mounting or wire suspension. Available with 3 optics (opal UGR<22 (OP), prismatic UGR<19 (Glare proTech MPT) and dynamic hexagonal pattern UGR<19 (HX); versions with UGR<19 are compliant to DSE requirements within EN12464). All optics and installation types are available in 3000K / 4000K CRI80 or 3000K / 4000K / 6500K or with variable colour temperature 2700-6500K (VCT) in CRI90. Product allows LOOP in / LOOP out or can be preconfigured with 2.5m mains lead with stranded ends or T-plugs (Wieland, Wago, Ensto).

CKIT
A connectivity ready, smart, DALI V2-dimmable shallow, versatile edge lit panel for lay-in, concealed and plasterboard ceilings as well as for surface mounting or wire suspension. Comes with interoperable plug & play CKIT element providing tool-less mechanical and electrical connection of wireless nodes or emergency packs. Available with 3 optics (opal UGR<22 (OP), prismatic UGR<19 (Glare proTech MPT) and dynamic hexagonal pattern UGR<19 (HX); versions with UGR<19 are compliant to DSE requirements within EN12464). All optics and installation types are available in 3000K / 4000K CRI80 or 3000K / 4000K / 6500K or with variable colour temperature 2700-6500K (VCT) in CRI90. Product allows LOOP in / LOOP out or can be preconfigured with 2.5m mains lead with stranded ends or T-plugs (Wieland, Wago, Ensto).

CKIT+
A connectivity and sensor ready, smart, DALI V2-dimmable shallow, versatile edge lit panel for lay-in, concealed and plasterboard ceilings as well as for surface mounting or wire suspension. Comes with interoperable plug & play CKIT element providing tool-less mechanical and electrical connection of wireless nodes or emergency packs with interchangeable optics. Available with 3 optics (opal UGR<22 (OP), prismatic UGR<19 (Glare proTech MPT) and dynamic hexagonal pattern UGR<19 (HX); versions with UGR<19 are compliant to DSE requirements within EN12464). All optics and installation types are available in 3000K / 4000K CRI80 or 3000K / 4000K / 6500K or with variable colour temperature 2700-6500K (VCT) in CRI90. Product allows LOOP in / LOOP out or can be preconfigured with 2.5m mains lead with stranded ends or T-plugs (Wieland, Wago, Ensto).

As Thorn Omega Pro 2
