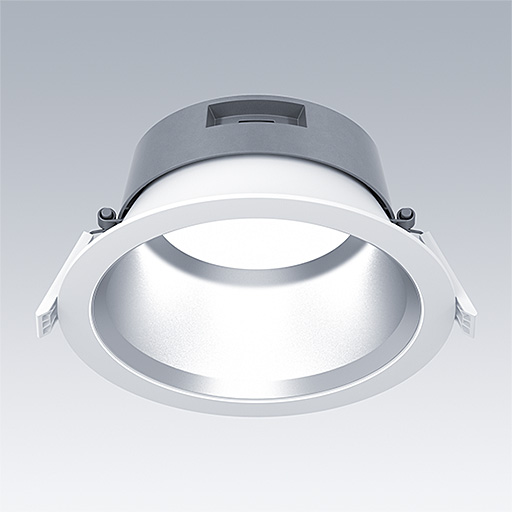

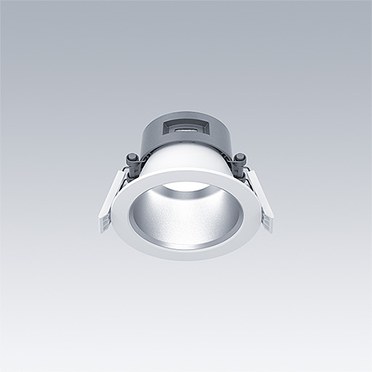

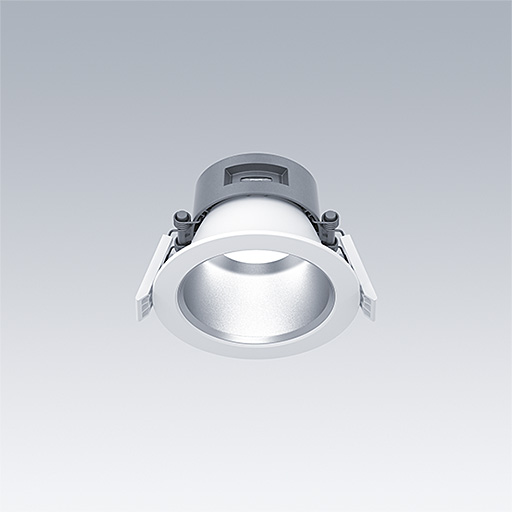

Chalice 3
Een assortiment hoogefficiënte, duurzame led-downlights in drie maten met max. 5000 lm
- Hoogst mogelijke armatuurefficiëntie voor toepassing met max. 155 lm/W voor besparing op energiekosten
- Compleet met kleurtemperatuur 3000 K, 4000 K led in KWI 80 of KWI 90. Lumenpakketten verkrijgbaar tussen 800 en 5000 lm (afhankelijk van de maat)
- Drie gladde reflectoroppervlakken: RSB afgewerkt in satinbrite met brede straal, RMB afgewerkt in hoogglans voor verbeterde verblindingsbescherming UGR19 volgens EN 12464), RWH afgewerkt in wit met brede straal
- Installatie zonder gereedschap met veerklemmen, rechtstreeks uit de doos, geschikt voor installatie in allerlei soorten plafonds met een dikte van 1-40 mm. De externe insteekbare driver maakt de installatie snel en eenvoudig. Doorvoerbedrading is mogelijk
- Standaard IP54 voor inbouwarmaturen, IP65 beschikbaar in myProduct. Armatuur voor hoge plafonds (5000 lm) in IP20, IP43 beschikbaar in myProduct. Opbouwarmatuur IP43 als standaard, IP54 beschikbaar in myProduct.
Materialen en Afwerking
Element: gietaluminium voor hoogefficiënt warmtebeheer met > 90 % gerecycleerd
Gladde reflector afgewerkt in satinbrite met brede straal; reflector/lijstwerk van hoge kwaliteit, zeer spiegelend polycarbonaat
Gladde reflector in hoogglans voor verbeterde verblindingsbescherming in kantoortoepassingen (UGR19 volgens EN 12464)
Gladde reflector afgewerkt in wit met brede straal; reflector/lijstwerk van hoge kwaliteit, zeer spiegelend polycarbonaat
Lijstwerk nagenoeg RAL 9016
Installatie en Montage
Chalice 3 wordt zonder extra gereedschap geïnstalleerd, direct uit de doos in een groot aantal verschillende plafonds, geschikt voor plafonds met een diepte van 1-40 mm. Totale inbouwdiepte slechts 100 mm, waardoor inbouw mogelijk is in ondiepe valse plafonds. De externe insteekbare driver maakt de installatie en het onderhoud snel en eenvoudig.
Specificatie
To specify state:
A high efficient and sustainable LED downlight with recessed height <100mm and cut out of 100mm, 150mm or 200mm. High efficient thermal management from diecast aluminium with recycling content >90%. IP54 as standard or IP65 with pre-mounted cover. IK09 rating. Fixed or dimmable driver (EHF, HFIX, COR, NLX) optional in combination with emergency E3/E3D. Colour temperature is 3000K/4000K/ with CRI >80 or CRI >90. Reflector made from PC with three surfaces: RSB in satinbrite finish with wide beam, RMB in high glossy/specular finish (UGR19 according to EN12464), RWH in white finish with wide beam. Luminaire luminous flux: 800–5000 lm. Lifetime is 50,000 hours at L90 (Ta 25°C).
As Thorn Chalice 3
- New Product
New Product
LumExpress Product
eControl Product
▼ Chalice 3 100
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 EHF RSB | LED | 0.41 | 92989190 | ||||||
| CHAL3 100 1400-840 EHF RSB | LED | 0.41 | 96108661 | ||||||
| CHAL3 100 1400-840 EHF RSB IP65 | LED | 0.42 | 92992995 | ||||||
| CHAL3 100 1400-940 EHF RSB | LED | 0.50 | 92989200 | ||||||
| CHAL3 100 800-830 EHF RSB | LED | 0.41 | 92989189 | ||||||
| CHAL3 100 800-840 EHF RSB | LED | 0.41 | 96108660 | ||||||
| CHAL3 100 800-940 EHF RSB | LED | 0.50 | 92989197 |
▼ Chalice 3 100 emergency
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 EHF E3 RSB | LED | 0.86 | 93900898 | ||||||
| CHAL3 100 1400-830 EHF E3D RSB | LED | 0.86 | 93901345 | ||||||
| CHAL3 100 1400-840 EHF E3 RSB | LED | 0.86 | 93901031 | ||||||
| CHAL3 100 1400-840 EHF E3D RSB | LED | 0.86 | 93901355 | ||||||
| CHAL3 100 800-830 EHF E3 RSB | LED | 0.86 | 93900899 | ||||||
| CHAL3 100 800-830 EHF E3D RSB | LED | 0.86 | 93901343 | ||||||
| CHAL3 100 800-840 EHF E3 RSB | LED | 0.86 | 93901335 | ||||||
| CHAL3 100 800-840 EHF E3D RSB | LED | 0.86 | 93901334 |
▼ Chalice 3 100, dimbaar
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 HFIX RSB | LED | 0.41 | 92989193 | ||||||
| CHAL3 100 1400-840 HFIX RSB | LED | 0.41 | 92989194 | ||||||
| CHAL3 100 1400-940 HFIX RSB | LED | 0.50 | 92989240 | ||||||
| CHAL3 100 800-830 HFIX RSB | LED | 0.41 | 92989192 | ||||||
| CHAL3 100 800-840 HFIX RSB | LED | 0.41 | 92989239 | ||||||
| CHAL3 100 800-940 HFIX RSB | LED | 0.50 | 92989201 |
▼ Chalice 3 100 dimbaar, emergency
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 1400-830 HFIX E3 RSB | LED | 0.86 | 93900897 | ||||||
| CHAL3 100 1400-830 HFIX E3D RSB | LED | 0.86 | 93900895 | ||||||
| CHAL3 100 1400-840 HFIX E3 RSB | LED | 0.86 | 93901018 | ||||||
| CHAL3 100 1400-840 HFIX E3D RSB | LED | 0.86 | 93901346 | ||||||
| CHAL3 100 800-830 HFIX E3 RSB | LED | 0.86 | 93901017 | ||||||
| CHAL3 100 800-830 HFIX E3D RSB | LED | 0.86 | 93901344 | ||||||
| CHAL3 100 800-840 HFIX E3 RSB | LED | 0.86 | 93901297 | ||||||
| CHAL3 100 800-840 HFIX E3D RSB | LED | 0.86 | 93901299 |
▼ Chalice 3 150
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 150 1400-830 EHF RMB | LED | 0.68 | 92989206 | ||||||
| CHAL3 150 1400-830 EHF RSB | LED | 0.68 | 92989202 | ||||||
| CHAL3 150 1400-840 EHF RMB | LED | 0.68 | 92989209 | ||||||
| CHAL3 150 1400-840 EHF RSB | LED | 0.68 | 96108662 | ||||||
| CHAL3 150 1400-940 EHF RMB | LED | 0.68 | 92989227 | ||||||
| CHAL3 150 1400-940 EHF RSB | LED | 0.68 | 92989224 | ||||||
| CHAL3 150 2000-830 EHF RMB | LED | 0.68 | 92989207 | ||||||
| CHAL3 150 2000-830 EHF RSB | LED | 0.68 | 92989203 | ||||||
| CHAL3 150 2000-840 EHF RMB | LED | 0.68 | 92989210 | ||||||
| CHAL3 150 2000-840 EHF RSB | LED | 0.68 | 96108663 | ||||||
| CHAL3 150 2000-840 EHF RSB IP65 | LED | 0.71 | 96108789 | ||||||
| CHAL3 150 2000-940 EHF RMB | LED | 0.68 | 92989228 | ||||||
| CHAL3 150 2000-940 EHF RSB | LED | 0.68 | 92989225 | ||||||
| CHAL3 150 3000-830 EHF RMB | LED | 0.68 | 92989208 | ||||||
| CHAL3 150 3000-830 EHF RSB | LED | 0.68 | 92989204 | ||||||
| CHAL3 150 3000-840 EHF RMB | LED | 0.68 | 92989211 | ||||||
| CHAL3 150 3000-840 EHF RSB | LED | 0.68 | 96108664 | ||||||
| CHAL3 150 3000-940 EHF RMB | LED | 0.68 | 92989229 | ||||||
| CHAL3 150 3000-940 EHF RSB | LED | 0.68 | 92989226 |
▼ Chalice 3 150 emergency
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 150 1400-830 EHF E3 RMB | LED | 1.13 | 93901051 | ||||||
| CHAL3 150 1400-830 EHF E3 RSB | LED | 1.13 | 93901048 | ||||||
| CHAL3 150 1400-830 EHF E3D RMB | LED | 1.13 | 93901352 | ||||||
| CHAL3 150 1400-830 EHF E3D RSB | LED | 1.13 | 93901350 | ||||||
| CHAL3 150 1400-840 EHF E3 RMB | LED | 1.13 | 93901197 | ||||||
| CHAL3 150 1400-840 EHF E3 RSB | LED | 1.13 | 93901030 | ||||||
| CHAL3 150 1400-840 EHF E3D RMB | LED | 1.13 | 93901195 | ||||||
| CHAL3 150 2000-830 EHF E3 RMB | LED | 1.13 | 93901052 | ||||||
| CHAL3 150 2000-830 EHF E3 RSB | LED | 1.13 | 93901049 | ||||||
| CHAL3 150 2000-830 EHF E3D RMB | LED | 1.13 | 93901354 | ||||||
| CHAL3 150 2000-840 EHF E3 RMB | LED | 1.13 | 93901196 | ||||||
| CHAL3 150 2000-840 EHF E3 RSB | LED | 1.13 | 93900863 | ||||||
| CHAL3 150 2000-840 EHF E3D RMB | LED | 1.13 | 93901198 | ||||||
| CHAL3 150 2000-840 EHF E3D RSB | LED | 1.13 | 93901357 | ||||||
| CHAL3 150 3000-830 EHF E3 RMB | LED | 1.13 | 93901193 | ||||||
| CHAL3 150 3000-830 EHF E3 RSB | LED | 1.13 | 93901050 | ||||||
| CHAL3 150 3000-830 EHF E3D RMB | LED | 1.13 | 93901194 | ||||||
| CHAL3 150 3000-840 EHF E3 RMB | LED | 1.13 | 93901200 | ||||||
| CHAL3 150 3000-840 EHF E3 RSB | LED | 1.13 | 93901029 | ||||||
| CHAL3 150 3000-840 EHF E3D RMB | LED | 1.13 | 93901199 | ||||||
| CHAL3 150 3000-840 EHF E3D RSB | LED | 1.13 | 93901358 |
▼ Chalice 3 150 dimbaar
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 150 1400-830 HFIX RMB | LED | 0.69 | 92989218 | ||||||
| CHAL3 150 1400-830 HFIX RSB | LED | 0.69 | 92989212 | ||||||
| CHAL3 150 1400-840 HFIX RMB | LED | 0.69 | 92989221 | ||||||
| CHAL3 150 1400-840 HFIX RSB | LED | 0.69 | 92989215 | ||||||
| CHAL3 150 1400-940 HFIX RMB | LED | 0.69 | 92989233 | ||||||
| CHAL3 150 1400-940 HFIX RSB | LED | 0.69 | 92989230 | ||||||
| CHAL3 150 2000-830 HFIX RMB | LED | 0.69 | 92989219 | ||||||
| CHAL3 150 2000-830 HFIX RSB | LED | 0.69 | 92989213 | ||||||
| CHAL3 150 2000-840 HFIX RMB | LED | 0.69 | 92989222 | ||||||
| CHAL3 150 2000-840 HFIX RSB | LED | 0.69 | 92989216 | ||||||
| CHAL3 150 2000-940 HFIX RMB | LED | 0.69 | 92989234 | ||||||
| CHAL3 150 2000-940 HFIX RSB | LED | 0.69 | 92989231 | ||||||
| CHAL3 150 3000-830 HFIX RMB | LED | 0.69 | 92989220 | ||||||
| CHAL3 150 3000-830 HFIX RSB | LED | 0.69 | 92989214 | ||||||
| CHAL3 150 3000-840 HFIX RMB | LED | 0.69 | 92989223 | ||||||
| CHAL3 150 3000-840 HFIX RSB | LED | 0.69 | 92989217 | ||||||
| CHAL3 150 3000-940 HFIX RMB | LED | 0.69 | 92989243 | ||||||
| CHAL3 150 3000-940 HFIX RSB | LED | 0.69 | 92989232 |
▼ Chalice 3 150 dimbaar, emergency
▼ Chalice 3 200
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 EHF RSB | LED | 0.94 | 92989244 | ||||||
| CHAL3 200 1400-840 EHF RSB | LED | 0.94 | 96108665 | ||||||
| CHAL3 200 1400-940 EHF RSB | LED | 0.94 | 92989250 | ||||||
| CHAL3 200 2000-830 EHF RSB | LED | 0.94 | 92989245 | ||||||
| CHAL3 200 2000-840 EHF RSB | LED | 0.94 | 96108666 | ||||||
| CHAL3 200 2000-840 EHF RSB IP65 | LED | 0.99 | 92992726 | ||||||
| CHAL3 200 2000-940 EHF RSB | LED | 0.94 | 92989251 | ||||||
| CHAL3 200 3000-830 EHF RSB | LED | 0.94 | 92989246 | ||||||
| CHAL3 200 3000-840 EHF RSB | LED | 0.94 | 96108667 | ||||||
| CHAL3 200 3000-940 EHF RSB | LED | 0.94 | 92989252 | ||||||
| CHAL3 200 5000-830 EHF FL RSB | LED | 1.39 | 92989426 | ||||||
| CHAL3 200 5000-830 EHF WFL RSB | LED | 1.39 | 92989421 | ||||||
| CHAL3 200 5000-840 EHF FL RSB | LED | 1.39 | 96108668 | ||||||
| CHAL3 200 5000-840 EHF WFL RSB | LED | 1.39 | 92989422 |
▼ Chalice 3 200 emergency
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 EHF E3 RSB | LED | 1.39 | 93901304 | ||||||
| CHAL3 200 1400-830 EHF E3D RSB | LED | 1.39 | 93901303 | ||||||
| CHAL3 200 1400-840 EHF E3 RSB | LED | 1.39 | 93900864 | ||||||
| CHAL3 200 1400-840 EHF E3D RSB | LED | 1.39 | 93901362 | ||||||
| CHAL3 200 2000-830 EHF E3 RSB | LED | 1.39 | 93901306 | ||||||
| CHAL3 200 2000-830 EHF E3D RSB | LED | 1.39 | 93901305 | ||||||
| CHAL3 200 2000-840 EHF E3 RSB | LED | 1.39 | 93900865 | ||||||
| CHAL3 200 2000-840 EHF E3D RSB | LED | 1.39 | 93901363 | ||||||
| CHAL3 200 3000-830 EHF E3 RSB | LED | 1.39 | 93901309 | ||||||
| CHAL3 200 3000-830 EHF E3D RSB | LED | 1.39 | 93901310 | ||||||
| CHAL3 200 3000-840 EHF E3 RSB | LED | 1.39 | 93900862 | ||||||
| CHAL3 200 3000-840 EHF E3D RSB | LED | 1.39 | 93901364 |
▼ Chalice 3 200 dimbaar
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 HFIX RSB | LED | 0.94 | 92989247 | ||||||
| CHAL3 200 1400-840 HFIX RSB | LED | 0.94 | 92989236 | ||||||
| CHAL3 200 1400-940 HFIX RSB | LED | 0.94 | 92989253 | ||||||
| CHAL3 200 2000-830 HFIX RSB | LED | 0.94 | 92989248 | ||||||
| CHAL3 200 2000-840 HFIX RSB | LED | 0.94 | 92989237 | ||||||
| CHAL3 200 2000-940 HFIX RSB | LED | 0.94 | 92989254 | ||||||
| CHAL3 200 3000-830 HFIX RSB | LED | 0.94 | 92989249 | ||||||
| CHAL3 200 3000-840 HFIX RSB | LED | 0.94 | 92989238 | ||||||
| CHAL3 200 3000-940 HFIX RSB | LED | 0.94 | 92989255 | ||||||
| CHAL3 200 5000-830 HFIX FL RSB | LED | 1.41 | 92989423 | ||||||
| CHAL3 200 5000-830 HFIX WFL RSB | LED | 1.41 | 92989425 | ||||||
| CHAL3 200 5000-840 HFIX FL RSB | LED | 1.41 | 92989424 | ||||||
| CHAL3 200 5000-840 HFIX WFL RSB | LED | 1.41 | 92989427 |
▼ Chalice 3 200 dimbaar, emergency
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 200 1400-830 HFIX E3 RSB | LED | 1.39 | 93901312 | ||||||
| CHAL3 200 1400-830 HFIX E3D RSB | LED | 1.39 | 93901311 | ||||||
| CHAL3 200 1400-840 HFIX E3 RSB | LED | 1.39 | 93901293 | ||||||
| CHAL3 200 1400-840 HFIX E3D RSB | LED | 1.39 | 93901294 | ||||||
| CHAL3 200 2000-830 HFIX E3 RSB | LED | 1.39 | 93901313 | ||||||
| CHAL3 200 2000-830 HFIX E3D RSB | LED | 1.39 | 93901314 | ||||||
| CHAL3 200 2000-840 HFIX E3 RSB | LED | 1.39 | 93900866 | ||||||
| CHAL3 200 2000-840 HFIX E3D RSB | LED | 1.39 | 93901295 | ||||||
| CHAL3 200 3000-830 HFIX E3 RSB | LED | 1.39 | 93901315 | ||||||
| CHAL3 200 3000-830 HFIX E3D RSB | LED | 1.39 | 93901316 | ||||||
| CHAL3 200 3000-840 HFIX E3 RSB | LED | 1.39 | 93901296 | ||||||
| CHAL3 200 3000-840 HFIX E3D RSB | LED | 1.39 | 93901298 |
▼ Chalice 3 125 opbouwmontage
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 MSF125 1400-840 EHF RSB | LED | 1.19 | 96108673 | ||||||
| CHAL3 MSF125 800-840 EHF RSB | LED | 1.19 | 96108672 |
▼ Chalice 3 180 opbouwmontage
| Description | Type | Gewicht (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 MSF180 1400-840 EHF RSB | LED | 2.67 | 96108669 | ||||||
| CHAL3 MSF180 2000-840 EHF RSB | LED | 2.67 | 96108670 | ||||||
| CHAL3 MSF180 3000-840 EHF RSB | LED | 2.67 | 96108671 |
▼ Chalice 3, accessoires
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL3 100 CEILING RING 110-120 WH | 0.09 | 96108712 | |||||||
| CHAL3 100 CEILING RING 130-140 WH | 0.10 | 96108713 | |||||||
| CHAL3 200 FROSTED RING | 0.12 | 96108711 | |||||||
| CHALICE 150 CEILING RING 160-170 WH | 0.41 | 96633601 | |||||||
| CHALICE 150 CEILING RING 180-190 WH | 0.48 | 96633602 | |||||||
| CHALICE 200 CEILING RING 210-220 WH | 0.44 | 96633600 | |||||||
| CHALICE 200 CEILING RING 230-240 WH | 0.48 | 96633599 | |||||||
| CHALICE/CETUS3 200 CEILING RING 250MM WH | 0.56 | 96633598 | |||||||
| DL CONNECTION BOX 3P TERM+LINECT | 0.07 | 96635252 | |||||||
| DL CONNECTION BOX 5P TERM+LINECT | 0.07 | 96635253 | |||||||
| GRIPPLE SAFETY WIRE | 0.01 | 96239327 | |||||||
| T CONNECTOR WL 3POLE | 0.04 | 96635256 | |||||||
| T CONNECTOR WL 5POLE | 0.04 | 96635257 | |||||||
| T CONNECTOR WO 3POLE | 0.04 | 96635254 | |||||||
| T CONNECTOR WO 5POLE | 0.04 | 96635255 | |||||||
| TEC/CONT/SLN2/SLOIN/EQL/CHAL3 ASI1 O-L | 0.07 | 22169178 | |||||||
| TEC/CONT/SLN2/SLOIN/EQL/CHAL3 ASI2 O-L | 0.80 | 22169179 |
