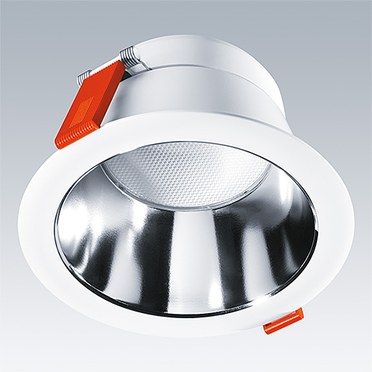

Chalice Pro
Geavanceerde LED downlight welke superieure prestaties biedt op het gebied van efficiency en levensduur
- Toonaangevende efficiency van >110lm/W
- Hoogwaardig optiek met lichtkamer voor een uniforme lichtuitstraling
- UGR <19 en CRI80 voor applicaties waar hoge lichtkwaliteit vereist is
- Compacte plafonduitsnede van 150mm en totale hoogte van 94mm om aan de design eisen te voldoen
Materialen en Afwerking
Behuizing: wit gelakt aluminium
Ring en kader: RAL9016
Reflector: Spiegelend of Satinbrite
Installatie en Montage
Bruikbaar voor inbouwplafonds, plafonduitsnede ø150mm. Chalice PRO kan rechtstreeks vanuit de doos gemonteerd worden in een breed scala aan plafond types met een plafonddikte tussen 1mm – 40mm. Geen gereedschap vereist, waardoor snelle en eenvoudige montage en onderhoud mogelijk is.
Specificatie
Chalice PRO downlight met geïntegreerd geoptimaliseerd warmtebeheer, aluminium behuizing en standaard IP54. Inbouw downlight met spiegel of Satinbrite reflector met bajonet bevestiging, gereedschapsloze montage, ø150mm plafonduitsnede. Geschikt voor plafonddikte 1-40mm. LED module met 1100/2000/3000 lm met passieve koeling, keuze uit 2 lichtkleuren 3000K of 4000K, plug-in-aansluiting met doorlus mogelijkheid.
New Product
LumExpress Product
eControl Product
▼ Chalice Pro, CRI 80, mirrorbrite reflector, dimbaar
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX RMB W6 | 9 | 1090 | LED | 0.49 | 96642356 | ||||
| CHAL PRO LED1100-840 HFIX RMB W6 | 9 | 1100 | LED | 0.49 | 96642357 | ||||
| CHAL PRO LED2000-830 HFIX RMB W6 | 16 | 1900 | LED | 0.49 | 96642358 | ||||
| CHAL PRO LED2000-840 HFIX RMB W6 | 16 | 2030 | LED | 0.49 | 96642359 | ||||
| CHAL PRO LED3000-830 HFIX RMB W6 | 25 | 2900 | LED | 0.49 | 96642360 | ||||
| CHAL PRO LED3000-840 HFIX RMB W6 | 25 | 3030 | LED | 0.49 | 96642361 |
▼ Chalice Pro, CRI 80, satinbrite reflector, dimbaar
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX RSB W6 | 9 | 1090 | LED | 0.49 | 96642332 | ||||
| CHAL PRO LED1100-840 HFIX RSB W6 | 9 | 1100 | LED | 0.49 | 96642333 | ||||
| CHAL PRO LED2000-830 HFIX RSB W6 | 16 | 1900 | LED | 0.49 | 96642334 | ||||
| CHAL PRO LED2000-840 HFIX RSB W6 | 16 | 2030 | LED | 0.49 | 96642335 | ||||
| CHAL PRO LED3000-830 HFIX RSB W6 | 25 | 2900 | LED | 0.49 | 96642336 | ||||
| CHAL PRO LED3000-840 HFIX RSB W6 | 25 | 3030 | LED | 0.49 | 96642337 |
▼ Chalice Pro, toebehoren
| Description | Gewicht (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 FROSTED RING | 0.05 | 96627651 | |||||||
| CHAL 150 HALO RING | 0.17 | 96627650 | |||||||
| CHAL 150 WALLWASHER RMB W6 | 0.17 | 96628054 | |||||||
| CHAL 150 WALLWASHER RSB W6 | 0.17 | 96627652 |
▼ Chalice Pro, geconfigureerde producten, CRI 80, mirrorbrite reflector
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF RMB W6 | 9 | 1090 | LED | 0.49 | 96642350 | ||||
| CHAL PRO LED1100-840 HF RMB W6 | 9 | 1100 | LED | 0.49 | 96642351 | ||||
| CHAL PRO LED2000-830 HF RMB W6 | 16 | 1900 | LED | 0.49 | 96642352 | ||||
| CHAL PRO LED2000-840 HF RMB W6 | 16 | 2030 | LED | 0.49 | 96642353 | ||||
| CHAL PRO LED3000-830 HF RMB W6 | 25 | 2900 | LED | 0.49 | 96642354 | ||||
| CHAL PRO LED3000-840 HF RMB W6 | 25 | 3030 | LED | 0.49 | 96642355 |
▼ Chalice Pro, geconfigureerde producten, CRI 80, mirrorbrite reflector, noodverlichting
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF E3 RMB W6 | 9 | 1090 | LED | 1.51 | 96642362 | ||||
| CHAL PRO LED1100-830 HF E3TX RMB W6 | 9 | 1090 | LED | 1.51 | 96643009 | ||||
| CHAL PRO LED1100-840 HF E3 RMB W6 | 9 | 1100 | LED | 1.51 | 96642363 | ||||
| CHAL PRO LED1100-840 HF E3TX RMB W6 | 9 | 1100 | LED | 1.51 | 96643010 | ||||
| CHAL PRO LED2000-830 HF E3 RMB W6 | 16 | 1900 | LED | 1.51 | 96642364 | ||||
| CHAL PRO LED2000-830 HF E3TX RMB W6 | 16 | 1900 | LED | 1.51 | 96643011 | ||||
| CHAL PRO LED2000-840 HF E3 RMB W6 | 16 | 2030 | LED | 1.51 | 96642365 | ||||
| CHAL PRO LED2000-840 HF E3TX RMB W6 | 16 | 2030 | LED | 1.51 | 96643012 | ||||
| CHAL PRO LED3000-830 HF E3 RMB W6 | 25 | 2900 | LED | 1.51 | 96642366 | ||||
| CHAL PRO LED3000-830 HF E3TX RMB W6 | 25 | 2900 | LED | 1.51 | 96643013 | ||||
| CHAL PRO LED3000-840 HF E3 RMB W6 | 25 | 3030 | LED | 1.51 | 96642367 | ||||
| CHAL PRO LED3000-840 HF E3TX RMB W6 | 25 | 3030 | LED | 1.51 | 96643014 |
▼ Chalice Pro, geconfigureerde producten, CRI 80, mirrorbrite reflector, dimbaar, noodverlichting
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX E3 RMB W6 | 9 | 1090 | LED | 1.51 | 96642368 | ||||
| CHAL PRO LED1100-830 HFIX E3TX RMB W6 | 9 | 1090 | LED | 1.51 | 96643015 | ||||
| CHAL PRO LED1100-840 HFIX E3 RMB W6 | 9 | 1100 | LED | 1.51 | 96642369 | ||||
| CHAL PRO LED1100-840 HFIX E3TX RMB W6 | 9 | 1100 | LED | 1.51 | 96643016 | ||||
| CHAL PRO LED2000-830 HFIX E3 RMB W6 | 16 | 1900 | LED | 1.51 | 96642370 | ||||
| CHAL PRO LED2000-830 HFIX E3TX RMB W6 | 16 | 1900 | LED | 1.51 | 96643017 | ||||
| CHAL PRO LED2000-840 HFIX E3 RMB W6 | 16 | 2030 | LED | 1.51 | 96642371 | ||||
| CHAL PRO LED2000-840 HFIX E3TX RMB W6 | 16 | 2030 | LED | 1.51 | 96643018 | ||||
| CHAL PRO LED3000-830 HFIX E3 RMB W6 | 25 | 2900 | LED | 1.51 | 96642372 | ||||
| CHAL PRO LED3000-830 HFIX E3TX RMB W6 | 25 | 2900 | LED | 1.51 | 96643019 | ||||
| CHAL PRO LED3000-840 HFIX E3 RMB W6 | 25 | 3030 | LED | 1.51 | 96642373 | ||||
| CHAL PRO LED3000-840 HFIX E3TX RMB W6 | 25 | 3030 | LED | 1.51 | 96643020 |
▼ Chalice Pro, geconfigureerde producten, CRI 80, satinbrite reflector
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF RSB W6 | 9 | 1090 | LED | 0.49 | 96642326 | ||||
| CHAL PRO LED1100-840 HF RSB W6 | 9 | 1100 | LED | 0.49 | 96642327 | ||||
| CHAL PRO LED2000-830 HF RSB W6 | 16 | 1900 | LED | 0.49 | 96642328 | ||||
| CHAL PRO LED2000-840 HF RSB W6 | 16 | 2030 | LED | 0.49 | 96642329 | ||||
| CHAL PRO LED3000-830 HF RSB W6 | 25 | 2900 | LED | 0.49 | 96642330 | ||||
| CHAL PRO LED3000-840 HF RSB W6 | 25 | 3030 | LED | 0.49 | 96642331 |
▼ Chalice Pro, geconfigureerde producten, CRI 80, satinbrite reflector, noodverlichting
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HF E3 RSB W6 | 9 | 1090 | LED | 1.51 | 96642338 | ||||
| CHAL PRO LED1100-830 HF E3TX RSB W6 | 9 | 1090 | LED | 1.51 | 96628066 | ||||
| CHAL PRO LED1100-840 HF E3 RSB W6 | 9 | 1100 | LED | 1.51 | 96642339 | ||||
| CHAL PRO LED1100-840 HF E3TX RSB W6 | 9 | 1100 | LED | 1.51 | 96628067 | ||||
| CHAL PRO LED2000-830 HF E3 RSB W6 | 16 | 1900 | LED | 1.51 | 96642340 | ||||
| CHAL PRO LED2000-830 HF E3TX RSB W6 | 16 | 1900 | LED | 1.51 | 96628068 | ||||
| CHAL PRO LED2000-840 HF E3 RSB W6 | 16 | 2030 | LED | 1.51 | 96642341 | ||||
| CHAL PRO LED2000-840 HF E3TX RSB W6 | 16 | 2030 | LED | 1.51 | 96642901 | ||||
| CHAL PRO LED3000-830 HF E3 RSB W6 | 25 | 2900 | LED | 1.51 | 96642342 | ||||
| CHAL PRO LED3000-830 HF E3TX RSB W6 | 25 | 2900 | LED | 1.51 | 96642902 | ||||
| CHAL PRO LED3000-840 HF E3 RSB W6 | 25 | 3030 | LED | 1.51 | 96642343 | ||||
| CHAL PRO LED3000-840 HF E3TX RSB W6 | 25 | 3030 | LED | 1.51 | 96642903 |
▼ Chalice Pro, geconfigureerde producten, CRI 80, satinbrite reflector, dimbaar, noodverlichting
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL PRO LED1100-830 HFIX E3 RSB W6 | 9 | 1090 | LED | 1.51 | 96642344 | ||||
| CHAL PRO LED1100-830 HFIX E3TX RSB W6 | 9 | 1090 | LED | 1.51 | 96642904 | ||||
| CHAL PRO LED1100-840 HFIX E3 RSB W6 | 9 | 1100 | LED | 1.51 | 96642345 | ||||
| CHAL PRO LED1100-840 HFIX E3TX RSB W6 | 9 | 1100 | LED | 1.51 | 96642905 | ||||
| CHAL PRO LED2000-830 HFIX E3 RSB W6 | 16 | 1900 | LED | 1.51 | 96642346 | ||||
| CHAL PRO LED2000-830 HFIX E3TX RSB W6 | 16 | 1900 | LED | 1.51 | 96642906 | ||||
| CHAL PRO LED2000-840 HFIX E3 RSB W6 | 16 | 2030 | LED | 1.51 | 96642347 | ||||
| CHAL PRO LED2000-840 HFIX E3TX RSB W6 | 16 | 2030 | LED | 1.51 | 96642907 | ||||
| CHAL PRO LED3000-830 HFIX E3 RSB W6 | 25 | 2900 | LED | 1.51 | 96642348 | ||||
| CHAL PRO LED3000-830 HFIX E3TX RSB W6 | 25 | 2900 | LED | 1.51 | 96642908 | ||||
| CHAL PRO LED3000-840 HFIX E3 RSB W6 | 25 | 3030 | LED | 1.51 | 96642349 | ||||
| CHAL PRO LED3000-840 HFIX E3TX RSB W6 | 25 | 3030 | LED | 1.51 | 96642909 |
