  • Plurio-renovatieset — LE PLU 18L35 730 RS BP3550 CL2

Plurio-renovatieset / LE PLU 18L35 730 RS BP3550 CL2

96800280

▼ Data Sheet

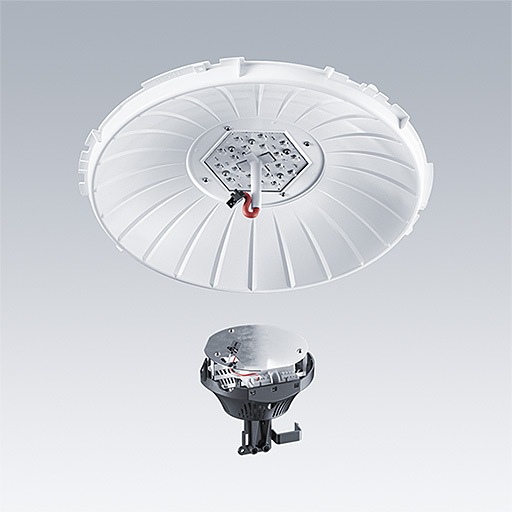

Refurbishment solution designed to deliver superior lighting performance, energy savings, and environmental responsibility. 18 LEDs driven at 350mA and a radially symmetric optic. Class II electrical. Electronic, fixed output control gear. Body: plastic in white. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight.Complete with 3000K LED

Dimensions: Ø517 x 104 mm
Luminaire input power: 20.2 W
Luminaire luminous flux: 2582 lm
Luminaire efficacy: 128 lm/W
Weight: 2.27 kg

Mode selectie
  • Lamppositie:STD - standaard
  • Lichtbron:LED
  • Lichtstroom van armatuur*:2582 lm
  • Lichtrendement van armatuur*:128 lm/W
  • Kleurweergave-index min.:70
  • Voorschakelapparaat:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
  • Gecorreleerde kleurtemperatuur*:3000 Kelvin
  • Kleurlocatietolerantie (initiële MacAdam):5
  • nominale levensduur (B10)*:L95 100000 h bij 25 °C
  • Armatuurvermogen*:20,2 W Vermogensfactor = 0,91
  • Sturing:FO
  • LED
  • CE
  • SC2
  • Ta=-30 to +25
