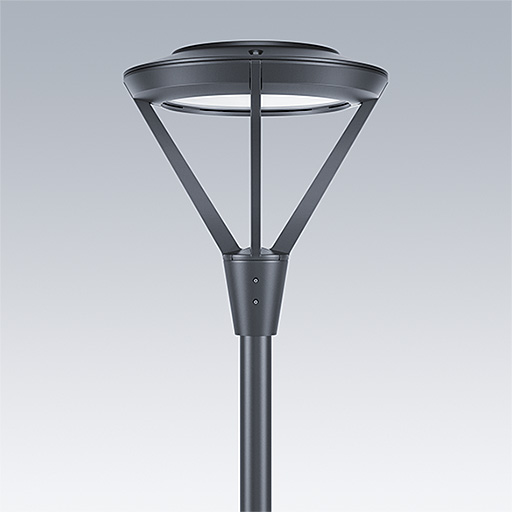

  • Avenue — AV 36L60-730 WSC GL CL2 WS0.3 T60 ANT

Avenue / AV 36L60-730 WSC GL CL2 WS0.3 T60 ANT

96684703

▼ Data Sheet

Sustainable urban lighting without compromise with 36 LEDs driven at 600mA and a Wide Street Comfort distribution optic. Class II electrical, IP66, Impact strength:. fixed output control gear Electronic. Body: Die-cast aluminium in anthracite (close to RAL7043). Robust solution with excellent corrosion resistance of C5. Enclosure: flat glass. Post top mounting to Ø60mm column. Pre-wired with 0.3m, 1.5mm² H07RN-F cable. Complete with 3000K LED

Dimensions: Ø501 x 547 mm
Luminaire input power: 65 W
Luminaire luminous flux: 8240 lm
Luminaire efficacy: 127 lm/W
Weight: 10.5 kg
Scx: 0.13 m²

Mode selectie
    • CE
    • IP66
    • SC2
    • Ta=35°C

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
