Axyl Trim / AXYL TRIM L PERF 6L930 A/S HF BK

96700300

Data Sheet

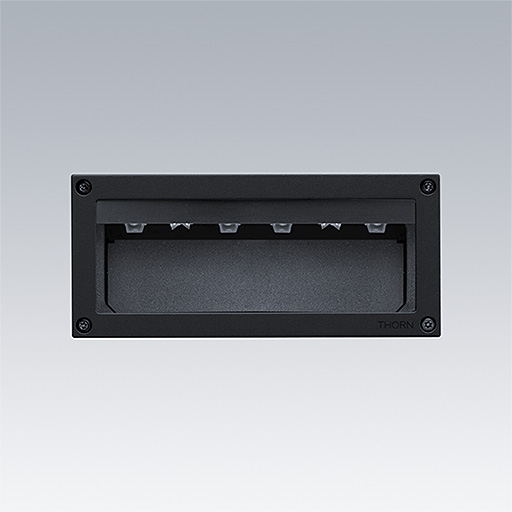

Axyl Trim, performance facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. Recessed box 96700290 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +50°C. Complete with 3000K LED. Recessed box 96700290 to be order separately.

Dimensions: 230 x 102 x 95 mm
Luminaire input power: 11.8 W
Luminaire luminous flux: 430 lm
Luminaire efficacy: 36 lm/W
Weight: 1.36 kg

Mode selectie
  • Lamppositie:STD - standaard
  • Lichtbron:LED
  • Lichtstroom van armatuur*:430 lm
  • Lichtrendement van armatuur*:36 lm/W
  • Kleurweergave-index min.:90
  • Gecorreleerde kleurtemperatuur*:3000 Kelvin
  • Kleurlocatietolerantie (initiële MacAdam):3
  • nominale levensduur (B10)*:L80 70000 h bij 25 °C
  • Voorschakelapparaat:1x LED_DRV
  • Armatuurvermogen*:11,8 W Vermogensfactor = 0,94
  • Sturing:FIX
  • LED
  • CE
  • IK06
  • IP65
  • SC1

Photometry
