  • Axyl Opera — AXYL OPERA S WO 1L 940 WB HF GY

Axyl Opera / AXYL OPERA S WO 1L 940 WB HF GY

96700760

▼ Data Sheet

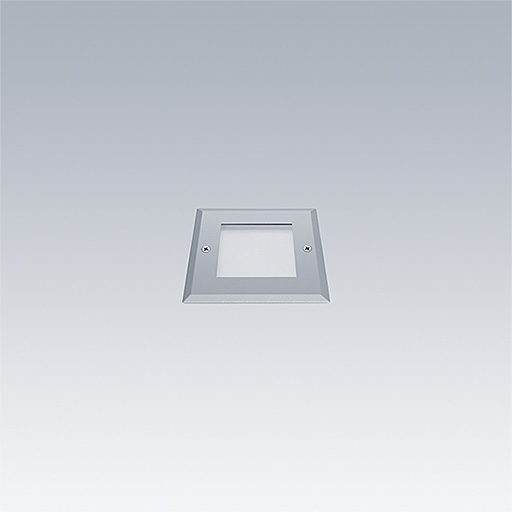

Axyl Opera, small size wide beam (frosted), a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. Fixed output LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +45°C. Complete with 4000K LED..

Dimensions: 85 x 85 x 125 mm
Luminaire input power: 2.2 W
Luminaire luminous flux: 21 lm
Luminaire efficacy: 10 lm/W
Weight: 0.67 kg

Mode selectie
    • CE
    • IK09
    • IP67
    • SC1

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
