  • Axyl Opera — AXYL OPERA S WO 1L 927 WB HF WH

Axyl Opera / AXYL OPERA S WO 1L 927 WB HF WH

96700754

▼ Data Sheet

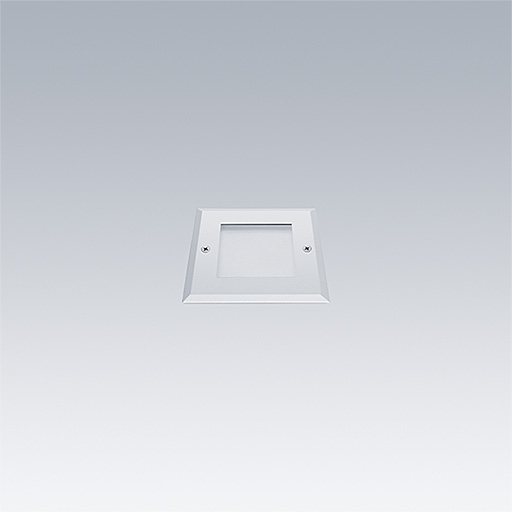

Axyl Opera, small size wide beam (frosted), a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. Fixed output LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..

Dimensions: 85 x 85 x 125 mm
Luminaire input power: 2.2 W
Luminaire luminous flux: 19 lm
Luminaire efficacy: 9 lm/W
Weight: 0.67 kg

Mode selectie
    • CE
    • IK09
    • IP67
    • SC1
