  • Axyl Opera — AXYL OPERA XL WO 5L RGBW WB PWM SS

Axyl Opera / AXYL OPERA XL WO 5L RGBW WB PWM SS

96701058

▼ Data Sheet

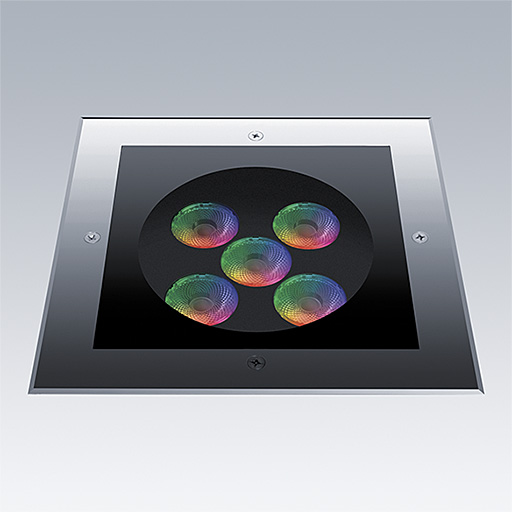

Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. fixed output control gear LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +45°C...

Dimensions: 275 x 275 x 245 mm
Luminaire input power: 23 W
Luminaire luminous flux: 764 lm
Luminaire efficacy: 33 lm/W
Weight: 8.19 kg

Mode selectie
    • CE
    • IK09
    • IP67
    • SC3

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
