  • Axyl Opera — AXYL OPERA L WO 9L 930 NB HFX BK

Axyl Opera / AXYL OPERA L WO 9L 930 NB HFX BK

96700919

▼ Data Sheet

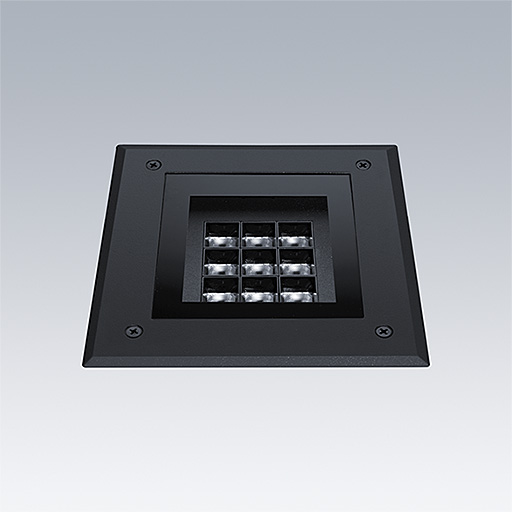

Axyl Opera, large size narrow beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with narrow beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +40°C. Complete with 3000K LED..

Dimensions: 210 x 210 x 135 mm
Luminaire input power: 16.6 W
Luminaire luminous flux: 1136 lm
Luminaire efficacy: 68 lm/W
Weight: 4.08 kg

Mode selectie
    • CE
    • IK09
    • IP67
    • SC1

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
