  • Axyl Opera — AXYL OPERA L WO 1L 927 MB HFX GY

Axyl Opera / AXYL OPERA L WO 1L 927 MB HFX GY

96700936

▼ Data Sheet

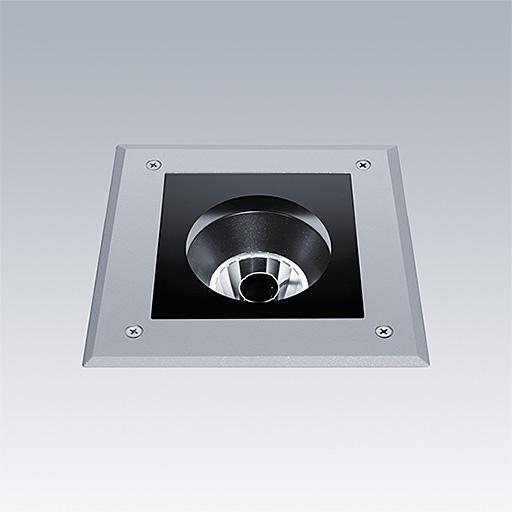

Axyl Opera, large size medium beam, a floor recessed, architectural LED luminaire for decorative facade lighting, with medium beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +45°C. Complete with 2700K LED..

Dimensions: 210 x 210 x 135 mm
Luminaire input power: 15.2 W
Luminaire luminous flux: 939 lm
Luminaire efficacy: 62 lm/W
Weight: 3.43 kg

Mode selectie
    • CE
    • IK09
    • IP67
    • SC1

    ▼ Photometry

    Fotometrische configuratie

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Stap 1: Technische gegevens
    (lm)
    (m)
    (m)
    (%)
    Stap 2: Gegevens ruimte
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
