  • Axyl Opera — AXYL OPERA XL WO 30L 940 WB HFX ANT

Axyl Opera / AXYL OPERA XL WO 30L 940 WB HFX ANT

96701105

▼ Data Sheet

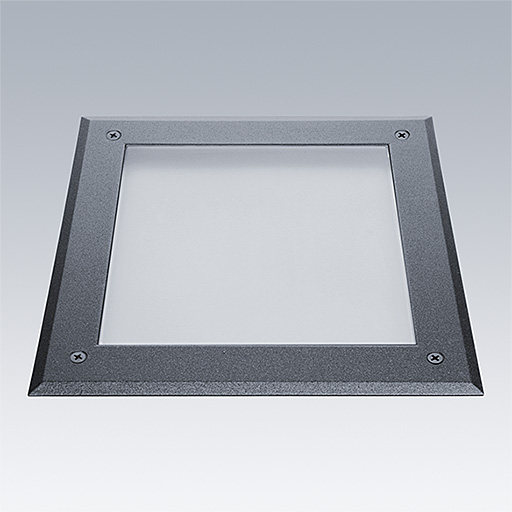

Axyl Opera, extra-large size wide beam (frosted), a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 4000K LED..

Dimensions: 280 x 280 x 245 mm
Luminaire input power: 11.1 W
Luminaire luminous flux: 319 lm
Luminaire efficacy: 29 lm/W
Weight: 6.17 kg

Mode selectie
    • CE
    • IK09
    • IP67
    • SC1

    ▼ Photometry

    Fotometrische configuratie
