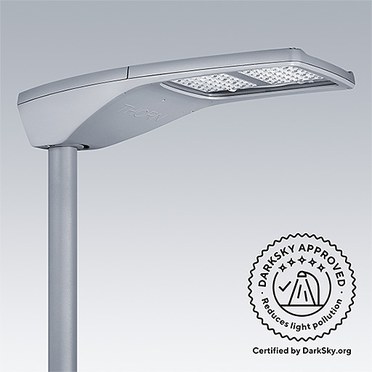

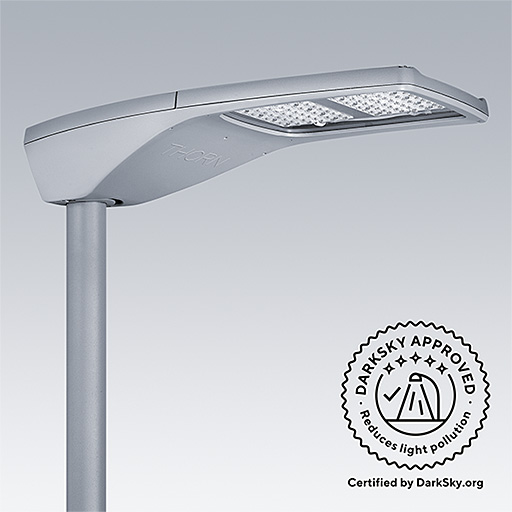

R2L2

  • R2L2
  • R2L2

Een complete collectie van weglantaarns met geavanceerde LED-technologie om uitstekende verlichting prestaties aan te bieden bij verschillende toepassingen

  • Comprehensive range available in two sizes with extensive optical, lumen and light distribution choice for all road applications
  • De efficiënte (tot 120lm/W) R-PEC optiek biedt 12 verschillende lichtverdelingen voor nauwkeurige uitlichten zonder licht-polutie
  • Maximaliseert energiebesparing met een breed scala van intelligente verlichtingscontrole van dimmen tot volledige afstandsbediening via centraal monitoring systeem
  • Aantrekkelijk, universeel en geïntegreerd opzetstuk biedt flexibiliteit voor top- en zijdelingse montage, evenals kantelinstelling.

Materialen en Afwerking

Housing, canopies, spigot: die-cast aluminium with light grey 150 sanded textured (close to RAL9006) and min 1000hrs salt fog resistance
Glass: extra-white tempered, 4mm thick
Screws: Ecolubric® treated

Powder coating texturised light grey as standard. Other RAL or AKZO colours available on request. Other special treatment on request.

Installatie en Montage

Post-top montage: Ø60-76mm
Laterale montage: Ø48-60mm of Ø32-42-48-60mm (CL1 als standaard)
Werkingstemperatuur: -25°C < Ta < +35°C
Geschikt voor gebruik tot +50°C door middel van een warmteregulatiesysteem
Aanbevolen montagehoogte: 4m to 14m
Aanpasbare hoek zijkant: 0°/ -5°/ -10°/ -15°
Aanpasbare hoek top 0°/ +5°/ +10°

Specificatie

To specify state:
Two sizes with extensive optical, lumen and light distribution choice for all road applications. Efficient (up to 120lm/W) R-PEC optic with 12 light distributions for precise light placement with minimum waste light. Wide range of intelligent lighting control solutions from stand alone dimming to fully remote control via central monitoring system. Attractive, universal and integrated spigot offering flexibility through top and side entry as well as tilt adjustment up to 15°. Easy to fit back and front louvres which can be fitted retrospectively for extra light control and comfort. Four spare parts defined: canopy, glass enclosure, gear tray incl. driver, LED cover (incl. LED module and lenses).
As Thorn R2L2.

go to myProduct R2L2

New Product
LumExpress Product
eControl Product

▼ Standaard lijst

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 EWC 740 CL1151819LED9.0896268396
R2L2 S 12L35 EWC L740 CL2 BPS151819LED8.8996265877
R2L2 S 12L50 EWC 740 CL1202508LED9.0896268404
R2L2 S 12L50 EWC L730 CL2 BPS202266LED8.8996265904
R2L2 S 12L50 EWC L740 CL2 BPS202508LED8.8996265905
R2L2 S 12L70 EWC 740 CL1283375LED9.0896268416
R2L2 S 12L70 EWC L740 CL2 BPS283375LED8.8996265933
R2L2 S 24L35 EWC 740 CL1283630LED9.5496268428
R2L2 S 24L50 EWC 740 CL1384999LED9.5496268439
R2L2 S 24L70 EWC 740 CL1536710LED9.5496268451
R2L2 S 24L70 EWC L730 CL2536061LED9.3596266062
R2L2 S 24L70 EWC L740 CL2536710LED9.3596266064
R2L2 S 36L35 EWC 740 CL1405430LED9.5196268462
R2L2 S 36L50 EWC 740 CL1557464LED9.5196268473
R2L2 S 36L50 EWC L730 CL2556741LED9.3296266151
R2L2 S 36L70 EWC 740 CL1789984LED9.5196268485
R2L2 S 36L70 EWC L730 CL2789018LED9.3296266192
R2L2 S 36L70 EWC L740 CL2789984LED9.3296266194
R2L2 S 48L35 EWC 740 CL1507224LED9.5696268496
R2L2 S 48L35 EWC L740 CL2507224LED9.3796266245
R2L2 S 48L50 EWC 740 CL1729913LED9.5696268507
R2L2 S 48L50 EWC L740 CL2729913LED9.3796266284
R2L2 S 48L70 EWC 740 CL110113222LED9.9796268514
R2L2 S 48L70 EWC L740 CL2 BP10113222LED9.7896266339

▼ R2L2 Small, Narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 NR 740 CL1151887LED9.0896268397
R2L2 S 12L35 NR L740 CL2 BPS151887LED8.8996265883
R2L2 S 12L35-740 NR BPS CL2 GY151887LED8.8996275551
R2L2 S 12L50 NR 740 CL1202603LED9.0896268405
R2L2 S 12L50 NR L730 CL2 BPS202351LED8.8996265910
R2L2 S 12L50-740 NR BPS CL2 GY202603LED8.8996275552
R2L2 S 12L70 NR 740 CL1283503LED9.0896268418
R2L2 S 12L70 NR 740 CL2283503LED8.8996268419
R2L2 S 12L70 NR L730 CL2 BPS283164LED8.8996265938
R2L2 S 12L70-740 NR BPS CL2 GY283503LED8.8996275553
R2L2 S 24L35 NR 740 CL1283767LED9.5496268430
R2L2 S 24L35 NR L730 CL2283402LED9.3596265981
R2L2 S 24L35 NR L740 CL2283767LED9.3596265983
R2L2 S 24L35-740 NR BPS CL2 GY283767LED9.3596275555
R2L2 S 24L50 NR 740 CL1385187LED9.5496268440
R2L2 S 24L50 NR L730 CL2384685LED9.3596266019
R2L2 S 24L50 NR L740 CL2385187LED9.3596266021
R2L2 S 24L50-740 NR BPS CL2 GY385187LED8.8096275554
R2L2 S 24L70 NR 740 CL1536963LED9.5496268453
R2L2 S 24L70 NR L730 CL2536289LED9.3596266070
R2L2 S 24L70 NR L740 CL2536963LED9.3596266072
R2L2 S 24L70-740 NR BPS CL2 GY536963LED0.0096275556
R2L2 S 36L35 NR 740 CL1405635LED9.5196268464
R2L2 S 36L35 NR L730 CL2405089LED9.3296266121
R2L2 S 36L35 NR L740 CL2405635LED9.3296266123
R2L2 S 36L35-740 NR BPS CL2 GY405635LED0.0096275557
R2L2 S 36L50 NR 740 CL1557745LED9.5196268474
R2L2 S 36L50 NR L730 CL2556995LED9.3296266159
R2L2 S 36L50 NR L740 CL2557745LED9.3296266163
R2L2 S 36L50-740 NR BPS CL2 GY557745LED9.7096275558
R2L2 S 36L70 NR 740 CL17810360LED9.5196268487
R2L2 S 36L70 NR L730 CL2789358LED9.3296266200
R2L2 S 36L70 NR L740 CL27810360LED9.3296266202
R2L2 S 36L70-740 NR BPS CL2 GY7810360LED0.0096275559
R2L2 S 48L35 NR 740 CL1507496LED9.5696268498
R2L2 S 48L35 NR L740 CL2507496LED9.3796266253
R2L2 S 48L35-740 NR BPS CL2 GY507496LED0.0096275560
R2L2 S 48L50 NR L730 CL2729291LED9.3796266292
R2L2 S 48L50 NR L740 CL17210286LED9.5696266286
R2L2 S 48L50 NR L740 CL27210286LED9.3796266295
R2L2 S 48L50 NR L757 CL1729056LED9.5696266287
R2L2 S 48L50-740 NR BPS CL2 GY7210286LED12.0096275561
R2L2 S 48L70 NR L730 CL210112392LED9.7896266345
R2L2 S 48L70 NR L740 CL110113720LED9.9796266347
R2L2 S 48L70 NR L740 CL210113720LED9.7896266349
R2L2 S 48L70 NR L757 CL110311997LED9.9796266340
R2L2 S 48L70-740 NR BPS CL2 GY10113720LED12.0096275562

▼ R2L2 Small, Narrow road optic, configured products

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 24L50 NR 730 CL2 BP384685LED9.3596266020
R2L2 S 24L50 NR L740 CL2 BP385187LED9.3596266022
R2L2 S 24L70 NR L740 CL2 BP536963LED9.3596266073
R2L2 S 36L70 NR L740 CL2 BP7810360LED9.3296266203
R2L2 S 48L35 NR L730 CL2 CLO BP495733LED9.3796266248
R2L2 S 48L35 NR L740 CL2 MD507496LED9.4196271985
R2L2 S 48L50 NR L730 CL2 BP729291LED9.3796266293
R2L2 S 48L50 NR L740 CL2 BP7210286LED9.3796266296
R2L2 S 48L70 NR L740 CL2 BP10113720LED9.7896266350

▼ R2L2 Small, Wide street optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 WS 740 CL1151875LED9.0896268401
R2L2 S 12L35 WS L730 CL2 BPS151693LED8.8996265888
R2L2 S 12L35 WS L740 CL2 BPS151875LED8.8996265889
R2L2 S 12L50 WS 740 CL1202586LED9.0896268411
R2L2 S 12L50 WS L730 CL2 BPS202336LED8.8996265916
R2L2 S 12L50 WS L740 CL2 BPS202586LED8.8996265917
R2L2 S 12L70 WS 740 CL1283480LED9.0896268425
R2L2 S 12L70 WS L730 CL2 BPS283143LED8.8996265945
R2L2 S 12L70 WS L740 CL2 BPS283480LED8.8996265946
R2L2 S 24L35 WS 740 CL1283742LED9.5496268436
R2L2 S 24L35 WS L740 CL2283742LED9.3596265991
R2L2 S 24L50 WS 740 CL1385153LED9.5496268446
R2L2 S 24L50 WS L730 CL2384654LED9.3596266040
R2L2 S 24L50 WS L740 CL2385153LED9.3596266042
R2L2 S 24L70 WS 740 CL1536917LED9.5496268459
R2L2 S 24L70 WS L740 CL2536917LED9.3596266080
R2L2 S 36L35 WS 740 CL1405598LED9.5196268470
R2L2 S 36L35 WS L740 CL2405598LED9.3296266131
R2L2 S 36L50 WS 740 CL1557694LED9.5196268480
R2L2 S 36L50 WS L730 CL2556949LED9.3296266170
R2L2 S 36L50 WS L740 CL2557694LED9.3296266172
R2L2 S 36L70 WS 740 CL17810292LED9.5196268493
R2L2 S 36L70 WS L730 CL2789296LED9.3296266208
R2L2 S 36L70 WS L740 CL27810292LED9.3296266210
R2L2 S 48L35 WS 740 CL1507447LED9.5696268504
R2L2 S 48L35 WS L730 CL2506726LED9.3796266260
R2L2 S 48L35 WS L740 CL2507447LED9.3796266262
R2L2 S 48L50 WS L730 CL2729229LED9.3796266320
R2L2 S 48L50 WS L740 CL17210218LED9.5696266314
R2L2 S 48L50 WS L740 CL27210218LED9.3796266322
R2L2 S 48L70 WS L730 CL210112310LED9.7896266364
R2L2 S 48L70 WS L740 CL110113629LED9.9796266358
R2L2 S 48L70 WS L740 CL210113629LED9.7896266367
R2L2 S 48L70 WS L757 CL110311816LED9.9796266359

▼ R2L2 Small, Wide street optic, constant light output

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L70 WS L740 CL2 CLO272863LED9.3896265943
R2L2 S 36L50 WS L740 CL2 CLO526380LED9.3296266168

▼ R2L2 Small, Wide street optic, configured products

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 WS 740 CL1 CLO PM141565LED9.1696272499
R2L2 S 24L50 WS 740 CL1 N3385153LED9.6696268448
R2L2 S 36L35 WS L740 CL2 CLO BP374670LED9.3296266128
R2L2 S 48L50 WS L730 CL2 CLO BP697701LED9.3796266317
R2L2 S 48L50 WS L740 CL2 CLO BP698474LED9.3796266319
R2L2 S 48L70 WS L740 CL2 CLO BP9811225LED9.7896266363

▼ R2L2 Small, Wide street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 WSC 740 CL1151848LED9.0896268402
R2L2 S 12L35 WSC L730 CL2 BPS151669LED8.8996265892
R2L2 S 12L35 WSC L740 CL2 BPS151848LED8.8996265893
R2L2 S 12L50 WSC 740 CL1202549LED9.0896268414
R2L2 S 12L50 WSC L730 CL2 BPS202302LED8.8996265920
R2L2 S 12L50 WSC L740 CL2 BPS202549LED8.8996265921
R2L2 S 12L70 WSC 740 CL1283429LED9.0896268426
R2L2 S 12L70 WSC L740 CL2 BPS283429LED8.8996265950
R2L2 S 24L35 WSC 740 CL1283688LED9.5496268437
R2L2 S 24L35 WSC L730 CL2283331LED9.3596265995
R2L2 S 24L35 WSC L740 CL2283688LED9.3596265997
R2L2 S 24L50 WSC 740 CL1385079LED9.5496268449
R2L2 S 24L50 WSC L730 CL2384587LED9.3596266046
R2L2 S 24L50 WSC L740 CL2385079LED9.3596266048
R2L2 S 24L70 WSC 740 CL1536817LED9.5496268460
R2L2 S 24L70 WSC L740 CL2536817LED9.3596266086
R2L2 S 36L35 WSC 740 CL1405517LED9.5196268471
R2L2 S 36L35 WSC L730 CL2404983LED9.3296266135
R2L2 S 36L35 WSC L740 CL2405517LED9.3296266137
R2L2 S 36L50 WSC 740 CL1557583LED9.5196268483
R2L2 S 36L50 WSC L730 CL2556849LED9.3296266176
R2L2 S 36L50 WSC L740 CL2557583LED9.3296266178
R2L2 S 36L70 WSC 740 CL17810144LED9.5196268494
R2L2 S 36L70 WSC L730 CL2789162LED9.3296266214
R2L2 S 36L70 WSC L740 CL27810144LED9.3296266216
R2L2 S 48L35 WSC 740 CL1507340LED9.5696268505
R2L2 S 48L35 WSC L740 CL2507340LED9.3796266268
R2L2 S 48L50 WSC L730 CL2729097LED9.3796266328
R2L2 S 48L50 WSC L740 CL17210071LED9.5696266324
R2L2 S 48L50 WSC L740 CL27210071LED9.3796266330
R2L2 S 48L70 WSC L730 CL210112133LED9.7896266373
R2L2 S 48L70 WSC L740 CL110113433LED9.9796266369
R2L2 S 48L70 WSC L740 CL210113433LED9.7896266375

▼ R2L2 Small, Wide street comfort optic, configured products

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 24L35 WSC L740 CL2 MD283688LED9.4196272759
R2L2 S 48L35 WSC L740 CL2 MD507340LED9.4196272303

▼ R2L2 Small, Wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 RWT 740 CL1151910LED9.0896268399
R2L2 S 12L50 RWT 740 CL1202634LED9.0896268409
R2L2 S 12L70 RWT 740 CL1283545LED9.0896268422
R2L2 S 24L35 RWT 740 CL1283812LED9.5496268433
R2L2 S 24L50 RWT 740 CL1385250LED9.5496268444
R2L2 S 24L50 RWT L740 CL2385250LED9.3596266030
R2L2 S 24L70 RWT 740 CL1537047LED9.5496268456
R2L2 S 36L35 RWT 740 CL1405703LED9.5196268467
R2L2 S 36L50 RWT 740 CL1557838LED9.5196268478
R2L2 S 36L70 RWT 740 CL17810486LED9.5196268490
R2L2 S 48L35 RWT 740 CL1507587LED9.5696268501
R2L2 S 48L50 RWT 740 CL17210411LED9.5696268510
R2L2 S 48L50 RWT L740 CL27210411LED9.3796266306
R2L2 S 48L70 RWT 740 CL110113886LED9.9796268517

▼ R2L2 Small, Road comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 RC 740 CL1151908LED9.0896268398
R2L2 S 12L50 RC 740 CL1202632LED9.0896268406
R2L2 S 12L70 RC 740 CL1283541LED9.0896268420
R2L2 S 12L70 RC 740 CL2283541LED8.8996268421
R2L2 S 24L35 RC 740 CL1283808LED9.5496268431
R2L2 S 24L35 RC 740 CL2283808LED9.3596268432
R2L2 S 24L50 RC 740 CL1385244LED9.5496268441
R2L2 S 24L50 RC L740 CL2385244LED9.3596266025
R2L2 S 24L70 RC 740 CL1537039LED9.5496268454
R2L2 S 24L70 RC 740 CL2537039LED9.3596268455
R2L2 S 36L35 RC 740 CL1405697LED9.5196268465
R2L2 S 36L35 RC 740 CL2405697LED9.3296268466
R2L2 S 36L50 RC 740 CL1557830LED9.5196268475
R2L2 S 36L70 RC 740 CL17810474LED9.5196268488
R2L2 S 36L70 RC 740 CL27810474LED9.3296268489
R2L2 S 48L35 RC 740 CL1507579LED9.5696268499
R2L2 S 48L35 RC 740 CL2507579LED9.3796268500
R2L2 S 48L50 RC L740 CL17210399LED9.5696266298
R2L2 S 48L50 RC L740 CL27210399LED9.3796266302
R2L2 S 48L70 RC 740 CL210113871LED9.7896268516
R2L2 S 48L70 RC L740 CL110113871LED9.9796266353
R2L2 S 48L70 RC L757 CL110112359LED9.9796266354

▼ R2L2 Small, Wide road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 WR 740 CL1151889LED9.0896268400
R2L2 S 12L50 WR 740 CL1202606LED9.0896268410
R2L2 S 12L70 WR 740 CL1283506LED9.0896268423
R2L2 S 12L70 WR 740 CL2283506LED8.8996268424
R2L2 S 24L35 WR 740 CL1283771LED9.5496268434
R2L2 S 24L35 WR 740 CL2283771LED9.3596268435
R2L2 S 24L50 WR 740 CL1385193LED9.5496268445
R2L2 S 24L50 WR L740 CL2385193LED9.3596266034
R2L2 S 24L70 WR 740 CL1536970LED9.5496268457
R2L2 S 24L70 WR 740 CL2536970LED9.3596268458
R2L2 S 36L35 WR 740 CL1405641LED9.5196268468
R2L2 S 36L35 WR 740 CL2405641LED9.3296268469
R2L2 S 36L50 WR 740 CL1557753LED9.5196268479
R2L2 S 36L70 WR 740 CL17810372LED9.5196268491
R2L2 S 36L70 WR 740 CL27810372LED9.3296268492
R2L2 S 48L35 WR 740 CL1507505LED9.5696268502
R2L2 S 48L35 WR 740 CL2507505LED9.3796268503
R2L2 S 48L50 WR 730 CL2729301LED9.3796266310
R2L2 S 48L50 WR L740 CL17210298LED9.5696266308
R2L2 S 48L50 WR L740 CL27210298LED9.3796266312
R2L2 S 48L70 WR 740 CL1 HT10113735LED10.0296269273
R2L2 S 48L70 WR L740 CL110113735LED9.9796266356

▼ R2L2 Small, Wide road optic, constant light output

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 48L35 WR L740 CL1 CLO496367LED9.5696266255

▼ R2L2 Small, Extra wide street optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 EWS 740 CL1151852LED9.0896268395
R2L2 S 12L35 EWS L740 CL2 BPS151852LED8.8996265871
R2L2 S 12L50 EWS 740 CL1202554LED9.0896268403
R2L2 S 12L50 EWS L740 CL2 BPS202554LED8.8996265899
R2L2 S 12L70 EWS 740 CL1283437LED9.0896268415
R2L2 S 12L70 EWS L730 CL2 BPS283105LED8.8996265926
R2L2 S 12L70 EWS L740 CL2 BPS283437LED8.8996265927
R2L2 S 24L35 EWS 740 CL1283696LED9.5496268427
R2L2 S 24L35 EWS L740 CL2283696LED9.3596265967
R2L2 S 24L50 EWS 740 CL1385090LED9.5496268438
R2L2 S 24L50 EWS L730 CL2384598LED9.3596266003
R2L2 S 24L50 EWS L740 CL2385090LED9.3596266005
R2L2 S 24L70 EWS 740 CL1536833LED9.5496268450
R2L2 S 24L70 EWS L740 CL2536833LED9.3596266056
R2L2 S 36L35 EWS 740 CL1405529LED9.5196268461
R2L2 S 36L35 EWS L730 CL2404994LED9.3296266104
R2L2 S 36L35 EWS L740 CL2405529LED9.3296266107
R2L2 S 36L50 EWS 740 CL1557600LED9.5196268472
R2L2 S 36L50 EWS L740 CL2557600LED9.3296266145
R2L2 S 36L70 EWS 740 CL17810167LED9.5196268484
R2L2 S 36L70 EWS L730 CL2789183LED9.3296266184
R2L2 S 36L70 EWS L740 CL27810167LED9.3296266186
R2L2 S 48L35 EWS 740 CL1507356LED9.5696268495
R2L2 S 48L35 EWS L740 CL2507356LED9.3796266236
R2L2 S 48L50 EWS 740 CL17210094LED9.5696268506
R2L2 S 48L50 EWS L730 CL2729117LED9.3796266274
R2L2 S 48L50 EWS L740 CL27210094LED9.3796266276
R2L2 S 48L70 EWS 740 CL110113463LED9.9796268513
R2L2 S 48L70 EWS L730 CL2 BP10112160LED9.7896266334
R2L2 S 48L70 EWS L740 CL2 BP10113463LED9.7896266335

▼ R2L2 Small, Extra wide street optic, configured products

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 36L35 EWS L740 CL1 MD405529LED9.5596266106
R2L2 S 48L35 EWS L740 CL2 MD507356LED9.4196271865

▼ R2L2 Small, Pedestrian crossing optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 36L70 IVS 740 CL27810030LED9.3296268486
R2L2 S 48L70 IVS 740 CL210113282LED9.7896268515

▼ R2L2 Small, Extra wide street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 S 12L35 EWC 740 CL1151819LED9.0896268396
R2L2 S 12L35 EWC L740 CL2 BPS151819LED8.8996265877
R2L2 S 12L50 EWC 740 CL1202508LED9.0896268404
R2L2 S 12L50 EWC L730 CL2 BPS202266LED8.8996265904
R2L2 S 12L50 EWC L740 CL2 BPS202508LED8.8996265905
R2L2 S 12L70 EWC 740 CL1283375LED9.0896268416
R2L2 S 12L70 EWC L740 CL2 BPS283375LED8.8996265933
R2L2 S 24L35 EWC 740 CL1283630LED9.5496268428
R2L2 S 24L50 EWC 740 CL1384999LED9.5496268439
R2L2 S 24L70 EWC 740 CL1536710LED9.5496268451
R2L2 S 24L70 EWC L730 CL2536061LED9.3596266062
R2L2 S 24L70 EWC L740 CL2536710LED9.3596266064
R2L2 S 36L35 EWC 740 CL1405430LED9.5196268462
R2L2 S 36L50 EWC 740 CL1557464LED9.5196268473
R2L2 S 36L50 EWC L730 CL2556741LED9.3296266151
R2L2 S 36L70 EWC 740 CL1789984LED9.5196268485
R2L2 S 36L70 EWC L730 CL2789018LED9.3296266192
R2L2 S 36L70 EWC L740 CL2789984LED9.3296266194
R2L2 S 48L35 EWC 740 CL1507224LED9.5696268496
R2L2 S 48L35 EWC L740 CL2507224LED9.3796266245
R2L2 S 48L50 EWC 740 CL1729913LED9.5696268507
R2L2 S 48L50 EWC L740 CL2729913LED9.3796266284
R2L2 S 48L70 EWC 740 CL110113222LED9.9796268514
R2L2 S 48L70 EWC L740 CL2 BP10113222LED9.7896266339

▼ R2L2 Medium, Narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 60L35 NR 740 CL1638947LED12.8696268295
R2L2 M 60L35 NR 757 CL2638319LED12.6796268296
R2L2 M 60L35 NR L740 CL2638947LED12.6796266393
R2L2 M 60L35-740 NR BPS CL1 GY638947LED13.4096630708
R2L2 M 60L35-740 NR BPS CL2 GY638947LED0.0096275563
R2L2 M 60L50 NR L730 CL28911107LED13.0796266412
R2L2 M 60L50 NR L740 CL18912297LED13.2696266416
R2L2 M 60L50 NR L740 CL28912297LED13.0796266414
R2L2 M 60L50 NR L757 CL19111364LED13.2696266417
R2L2 M 60L50-740 NR BPS CL1 GY8912297LED13.4096630709
R2L2 M 60L50-740 NR BPS CL2 GY8912297LED0.0096275564
R2L2 M 60L70 NR 740 CL1 HT12616450LED13.3196269279
R2L2 M 60L70 NR L730 CL212614858LED13.0796266444
R2L2 M 60L70 NR L740 CL112616450LED13.2696266448
R2L2 M 60L70 NR L740 CL212616450LED13.0796266446
R2L2 M 60L70-740 NR BPS CL1 GY12616450LED13.4096630710
R2L2 M 60L70-740 NR BPS CL2 GY12616450LED14.7596275565
R2L2 M 72L35 NR 740 CL17510717LED12.8396268324
R2L2 M 72L35 NR L740 CL27510717LED12.6496266480
R2L2 M 72L35-740 NR BPS CL1 GY7510717LED13.4096630711
R2L2 M 72L35-740 NR BPS CL2 GY7510717LED0.0096275566
R2L2 M 72L50 NR L740 CL110714709LED13.2496266504
R2L2 M 72L50 NR L740 CL210714709LED13.0596266502
R2L2 M 72L50-740 NR BPS CL1 GY10714709LED13.4096630712
R2L2 M 72L50-740 NR BPS CL2 GY10714709LED0.0096275567
R2L2 M 72L70-740 NR BPS CL1 GY15119629LED13.4096630713
R2L2 M 72L70-740 NR BPS CL2 GY15119629LED0.0096275568
R2L2 M 72L70V2 NR 740 CL1 HT15119629LED13.5896269289
R2L2 M 72L70V2 NR 757 CL215418015LED13.3496268345
R2L2 M 72L70V2 NR L730 CL215117730LED13.3496266535
R2L2 M 72L70V2 NR L740 CL115119629LED13.5396266541
R2L2 M 72L70V2 NR L740 CL215119629LED13.3496266538
R2L2 M 84L35 NR 740 CL18612478LED13.2996266575
R2L2 M 84L35 NR 740 CL28612478LED13.1096266573
R2L2 M 84L35-740 NR BPS CL1 GY8612478LED13.4196630714
R2L2 M 84L35-740 NR BPS CL2 GY8612478LED0.0096275569
R2L2 M 84L50 NR 740 CL112317102LED13.2996266607
R2L2 M 84L50 NR 740 CL212317102LED13.1096266605
R2L2 M 84L50-740 NR BPS CL1 GY12317102LED13.4196630715
R2L2 M 84L50-740 NR BPS CL2 GY12317102LED0.0096275570
R2L2 M 84L70 NR 740 CL117722761LED13.5896266653
R2L2 M 84L70 NR 740 CL1 HT17722761LED13.6396269299
R2L2 M 84L70 NR 740 CL217722761LED13.3996266650
R2L2 M 84L70-740 NR BPS CL1 GY17722761LED13.4196630716
R2L2 M 84L70-740 NR BPS CL2 GY17722761LED0.0096275571
R2L2 M 96L35 NR 740 CL19814232LED13.3496266687
R2L2 M 96L35 NR 740 CL29814232LED13.1596266685
R2L2 M 96L35-740 NR BPS CL1 GY9814232LED13.6396630717
R2L2 M 96L35-740 NR BPS CL2 GY9814232LED0.0096275572
R2L2 M 96L50-740 NR BPS CL1 GY14119473LED13.6396630718
R2L2 M 96L50-740 NR BPS CL2 GY14119473LED0.0096275573
R2L2 M 96L50V2 NR 740 CL114119473LED13.6496266721
R2L2 M 96L50V2 NR 740 CL1 HT14119473LED13.6996269309
R2L2 M 96L50V2 NR 740 CL214119473LED13.4596266719
R2L2 M 96L70 NR 740 CL120125841LED14.4596266760
R2L2 M 96L70 NR 740 CL220125841LED14.2696266758
R2L2 M 96L70-740 NR BPS CL1 GY20125841LED13.6396630719
R2L2 M 96L70-740 NR BPS CL2 GY20125841LED0.0096275574
R2L2 M 96L90 NR 740 CL126331934LED14.5096274635
R2L2 M 96L90 NR 740 CL226331934LED14.3096274646
R2L2 M 96L90-740 NR BPS CL1 GY26331934LED13.6396630720
R2L2 M 96L90-740 NR BPS CL2 GY26331934LED0.0096275575

▼ R2L2 Medium, Wide street optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 60L35 WS 740 CL1638885LED12.8696268303
R2L2 M 60L35 WS L730 CL2638025LED12.6796266400
R2L2 M 60L35 WS L740 CL2638885LED12.6796266402
R2L2 M 60L50 WS L730 CL28911030LED13.0796266428
R2L2 M 60L50 WS L740 CL18912212LED13.2696266432
R2L2 M 60L50 WS L740 CL28912212LED13.0796266430
R2L2 M 60L70 WS 740 CL1 HT12616336LED13.3196269285
R2L2 M 60L70 WS L740 CL112616336LED13.2696266466
R2L2 M 60L70 WS L740 CL212616336LED13.0796266464
R2L2 M 60L70 WS L757 CL112914865LED13.2696266467
R2L2 M 72L35 WS 740 CL17510642LED12.8396268332
R2L2 M 72L35 WS L740 CL27510642LED12.6496266490
R2L2 M 72L50 WS L730 CL210713194LED13.0596266519
R2L2 M 72L50 WS L740 CL110714607LED13.2496266523
R2L2 M 72L50 WS L740 CL210714607LED13.0596266521
R2L2 M 72L50 WS L757 CL111013389LED13.2496266524
R2L2 M 72L70V2 WS L740 CL115119493LED13.5396266559
R2L2 M 72L70V2 WS L740 CL215119493LED13.3496266557
R2L2 M 72L70V2 WS L757 CL115417744LED13.5396266560
R2L2 M 84L35 WS 740 CL18612392LED13.2996266590
R2L2 M 84L35 WS 740 CL28612392LED13.1096266588
R2L2 M 84L50 WS 740 CL112316983LED13.2996266635
R2L2 M 84L50 WS 740 CL212316983LED13.1096266633
R2L2 M 84L70 WS 740 CL117722603LED13.5896266671
R2L2 M 84L70 WS 740 CL1 HT17722603LED13.6396269305
R2L2 M 84L70 WS 740 CL217722603LED13.3996266669
R2L2 M 96L35 WS 740 CL19814133LED13.3496266705
R2L2 M 96L35 WS 740 CL29814133LED13.1596266703
R2L2 M 96L50V2 WS 740 CL114119338LED13.6496266740
R2L2 M 96L50V2 WS 740 CL214119338LED13.4596266738
R2L2 M 96L70 WS 740 CL120125662LED14.4596266779
R2L2 M 96L70 WS 740 CL220125662LED14.2696266777
R2L2 M 96L90 WS 740 CL126328700LED14.5096274640
R2L2 M 96L90 WS 740 CL226328700LED14.3096274651

▼ R2L2 Medium, Wide street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 60L35 WSC 740 CL1638761LED12.8696268304
R2L2 M 60L35 WSC L740 CL2638761LED12.6796266408
R2L2 M 60L50 WSC L740 CL18912042LED13.2696266440
R2L2 M 60L50 WSC L740 CL28912042LED13.0796266438
R2L2 M 60L50 WSC L757 CL19111469LED13.2696266441
R2L2 M 60L70 WSC 740 CL1 HT12616108LED13.3196269287
R2L2 M 60L70 WSC L730 CL212614550LED13.0796266470
R2L2 M 60L70 WSC L740 CL112616108LED13.2696266474
R2L2 M 60L70 WSC L740 CL212616108LED13.0796266472
R2L2 M 72L35 WSC 740 CL17510494LED12.8396268333
R2L2 M 72L35 WSC L740 CL27510494LED12.6496266496
R2L2 M 72L50 WSC L740 CL110714404LED13.2496266531
R2L2 M 72L50 WSC L740 CL210714404LED13.0596266529
R2L2 M 72L50 WSC L757 CL111013720LED13.2496266532
R2L2 M 72L70V2 WSC 740 CL115119221LED13.5396266567
R2L2 M 72L70V2 WSC 740 CL215119221LED13.3496266565
R2L2 M 84L35 WSC 740 CL18612219LED13.2996266598
R2L2 M 84L50 WSC 740 CL112316746LED13.2996266643
R2L2 M 84L50 WSC 740 CL212316746LED13.1096266641
R2L2 M 84L70 WSC 740 CL117722288LED13.5896266679
R2L2 M 84L70 WSC 740 CL217722288LED13.3996266677
R2L2 M 96L35 WSC 740 CL19813936LED13.3496266713
R2L2 M 96L35 WSC 740 CL29813936LED13.1596266711
R2L2 M 96L50V2 WSC 740 CL114119068LED13.6496266748
R2L2 M 96L50V2 WSC 740 CL214119068LED13.4596266746
R2L2 M 96L70 WSC 740 CL120125304LED14.4596266787
R2L2 M 96L70 WSC 740 CL220125304LED14.2696266785
R2L2 M 96L90 WSC 740 CL126331270LED14.5096274641
R2L2 M 96L90 WSC 740 CL226331270LED14.3096274652

▼ R2L2 Medium, Wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 60L35 RWT 740 CL1639050LED12.8696268300
R2L2 M 60L50 RWT 740 CL18912439LED13.2696268309
R2L2 M 60L70 RWT 740 CL112616640LED13.2696268318
R2L2 M 72L35 RWT 740 CL17610840LED12.8396268329
R2L2 M 72L50 RWT 740 CL110714879LED13.2496268338
R2L2 M 72L70 RWT 740 CL115119856LED13.5396268347
R2L2 M 84L35 RWT 740 CL18612622LED13.2996268356
R2L2 M 84L50 RWT 740 CL112317299LED13.2996268362
R2L2 M 84L50 RWT 740 CL212317299LED13.1096266619
R2L2 M 84L70 RWT 740 CL117723024LED13.5896268371
R2L2 M 96L35 RWT 740 CL19814396LED13.3496268379
R2L2 M 96L50 RWT 740 CL114119698LED13.6496268385
R2L2 M 96L70 RWT 740 CL120126139LED14.4596268393
R2L2 M 96L90 RWT 740 CL126332303LED14.5096274637

▼ R2L2 Medium, Road comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 60L35 RC 740 CL1639040LED12.8696268297
R2L2 M 60L50 RC L740 CL19112425LED13.2696266419
R2L2 M 60L50 RC L757 CL19111706LED13.2696266420
R2L2 M 60L70 RC L740 CL112916621LED13.2696266453
R2L2 M 60L70 RC L740 CL212916621LED13.0796266451
R2L2 M 72L35 RC 740 CL17610828LED12.8396268326
R2L2 M 72L35 RC 740 CL27610828LED12.6496268327
R2L2 M 72L50 RC L740 CL111014862LED13.2496266509
R2L2 M 72L50 RC L740 CL211014862LED13.0596266507
R2L2 M 72L70V2 RC 740 CL1 HT15419833LED13.5896269291
R2L2 M 72L70V2 RC L740 CL115419833LED13.5396266546
R2L2 M 72L70V2 RC L740 CL215419833LED13.3496266544
R2L2 M 84L35 RC 740 CL18812608LED13.2996266577
R2L2 M 84L35 RC 740 CL28812608LED13.1096268354
R2L2 M 84L50 RC 740 CL112817279LED13.2996266615
R2L2 M 84L50 RC 740 CL212817279LED13.1096266612
R2L2 M 84L70 RC 740 CL118022997LED13.5896266658
R2L2 M 84L70 RC 740 CL1 HT18022997LED13.6396269301
R2L2 M 84L70 RC 740 CL218022997LED13.3996266656
R2L2 M 96L35 RC 740 CL110014380LED13.3496266692
R2L2 M 96L35 RC 740 CL210014380LED13.1596266690
R2L2 M 96L50V2 RC 740 CL114519675LED13.6496266727
R2L2 M 96L50V2 RC 740 CL214519675LED13.4596266725
R2L2 M 96L70 RC 740 CL120426109LED14.4596266763
R2L2 M 96L70 RC 740 CL220426109LED14.2696266764
R2L2 M 96L90 RC 740 CL127132266LED14.5096274636
R2L2 M 96L90 RC 740 CL227132266LED14.3096274647

▼ R2L2 Medium, Wide road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
<R2L2 M 72L35 WR 757 CL27610057LED12.6496268331
R2L2 M 60L35 WR 740 CL1638957LED12.8696268301
R2L2 M 60L35 WR L740 CL2638957LED12.6796266396
R2L2 M 60L50 WR L740 CL18912311LED13.2696266424
R2L2 M 60L50 WR L740 CL28912311LED13.0796266422
R2L2 M 60L70 WR L740 CL112616469LED13.2696266458
R2L2 M 60L70 WR L740 CL212616469LED13.0796266456
R2L2 M 72L35 WR 740 CL17510729LED12.8396268330
R2L2 M 72L35 WR L740 CL27510729LED12.6496266484
R2L2 M 72L50 WR L740 CL110714726LED13.2496266515
R2L2 M 72L50 WR L740 CL210714726LED13.0596266513
R2L2 M 72L70V2 WR L740 CL115119652LED13.5396266551
R2L2 M 72L70V2 WR L740 CL215119652LED13.3496266549
R2L2 M 84L35 WR 740 CL18612493LED13.2996266582
R2L2 M 84L35 WR 740 CL28612493LED13.1096266580
R2L2 M 84L50 WR 740 CL112317121LED13.2996266627
R2L2 M 84L50 WR 740 CL212317121LED13.1096266624
R2L2 M 84L70 WR 740 CL117722787LED13.5896266663
R2L2 M 84L70 WR 740 CL217722787LED13.3996266661
R2L2 M 96L35 WR 740 CL19814248LED13.3496266697
R2L2 M 96L35 WR 740 CL29814248LED13.1596266695
R2L2 M 96L50V2 WR 740 CL114119495LED13.6496266732
R2L2 M 96L50V2 WR 740 CL214119495LED13.4596266730
R2L2 M 96L70 WR 740 CL120125871LED14.4596266770
R2L2 M 96L70 WR 740 CL220125871LED14.2696266768
R2L2 M 96L90 WR 740 CL126331971LED14.5096274639
R2L2 M 96L90 WR 740 CL226331971LED14.3096274650

▼ R2L2 Medium, Extra wide street optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 60L35 EWS 740 CL1638782LED12.8696268291
R2L2 M 60L50 EWS 740 CL18912070LED13.2696268305
R2L2 M 60L70 EWS 740 CL112616146LED13.2696268312
R2L2 M 72L35 EWS 740 CL17510519LED12.8396268320
R2L2 M 72L50 EWS 740 CL110714438LED13.2496268334
R2L2 M 72L70V2 EWS 740 CL115119267LED13.5396268341
R2L2 M 84L35 EWS 740 CL18612248LED13.2996268349
R2L2 M 84L50 EWS 740 CL112316786LED13.2996268358
R2L2 M 84L70 EWS 740 CL117722340LED13.5896268365
R2L2 M 96L35 EWS 740 CL19813969LED13.3496268373
R2L2 M 96L50V2 EWS 740 CL114119113LED13.6396268381
R2L2 M 96L70 EWS 740 CL120125363LED14.4596268388
R2L2 M 96L90 EWS 740 CL126331344LED14.5096274632
R2L2 M 96L90 EWS 740 CL226331344LED14.3096274643

▼ R2L2 Medium, Pedestrian crossing optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 60L70 IVS 740 CL212615918LED13.0796268314
R2L2 M 60L70 IVS 757 CL212914970LED13.0796268315
R2L2 M 72L70V2 IVS 740 CL215118995LED13.3496268343
R2L2 M 84L70 IVS 740 CL218020729LED13.3996268367
R2L2 M 84L70 IVS 757 CL218020729LED13.3996268368
R2L2 M 96L70 IVS 740 CL220125005LED14.2696266752
R2L2 M 96L90 IVS 740 CL226330902LED14.3096274645

▼ R2L2 Medium, Extra wide street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 96L90 EWC 740 CL226330791LED14.3096274644

▼ R2L2 Medium, 900mA

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
R2L2 M 96L90 EWR 740 CL227128970LED14.3096274642
R2L2 M 96L90 SC 740 CL227129139LED14.3096274649

▼ R2L2 Brackets

Description   Gewicht (kg)SAP Code
R2L2 BRA COL 0,50M GRY4.7096269055
R2L2 BRA MWA 0,50M GRY4.9096269054
R2L2 BRAX1 MA60 0,80M GRY8.3096269050
R2L2 BRAX1 MA76 0,80M GRY9.1096269051
R2L2 BRAX2 MA60 0,80M GRY13.4096269052
R2L2 BRAX2 MA76 0,80M GRY13.9096269053
